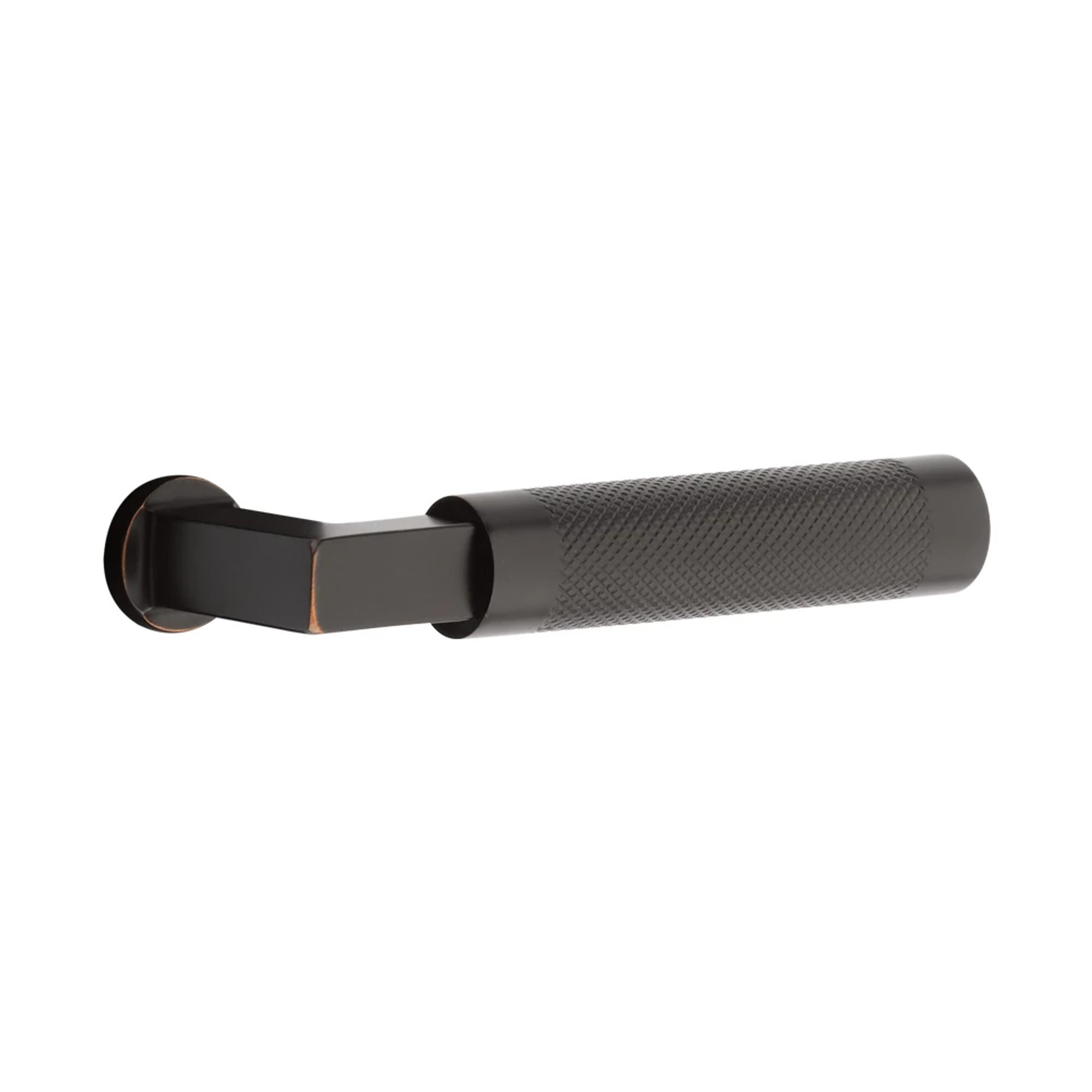

Emtek SELECT Lever

• Modular SELECT system — configure rosette, finish, function, and handing independently for hundreds of unique combinations
• 7 rosette styles: Disk, Square, Modern Rectangular, Urban Modern, Quincy, Watford, Wilshire
• 11 finishes (Disk, Square, Urban Modern, Quincy): Satin Brass (US4), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), Satin Rose Gold, Matte White
• 8 finishes (Modern Rectangular, Watford, Wilshire): as above, excluding Pewter (US15A), Satin Rose Gold, and Matte White
• Function configurable per order: Passage, Privacy, Dummy
• Handing configurable per order: Left Hand, Right Hand (Dummy is non-handed)
• 2-3/8″ backset standard; 2-3/4″ available — specify when ordering
• Fits doors 1-3/8″ to 2-1/4″ thick with standard 2-1/8″ bore prep
• Commercial-grade solid brass construction; assembled to order in Southern California
• Sold as complete set: rosette, lever, latch, and strike plate included

Keying Options

• Factory default — ships with Emtek’s standard EM keyway, keyed to a unique random key code.
• Keyed alike to another order item — match this lock to another compatible Emtek lock in your order so both can operate with the same key.
• Customer-supplied key code — provide an existing compatible Emtek key code at checkout when you need the lock keyed to a specific Emtek key. This does not mean the lock can automatically be keyed to Schlage, Weiser, or other third-party keyways.

Part Numbers for Emtek SELECT Lever

• Disk Rosette — Passage: 5109 · Privacy: 5209 · Dummy: 5059
• Square Rosette — Passage: 5110 · Privacy: 5210 · Dummy: 5050
• Modern Rectangular Rosette — Passage: 5112 · Privacy: 5212 · Dummy: 5052
• Urban Modern Rosette — Passage: 5316 · Privacy: 5326 · Dummy: 5306
• Quincy Rosette — Passage: 8131 · Privacy: 8231 · Dummy: 8531
• Watford Rosette — Passage: 8110 · Privacy: 8210 · Dummy: 8510
• Wilshire Rosette — Passage: 8161 · Privacy: 8261 · Dummy: 8561
