Dorex 1020 Universal replacement hinge

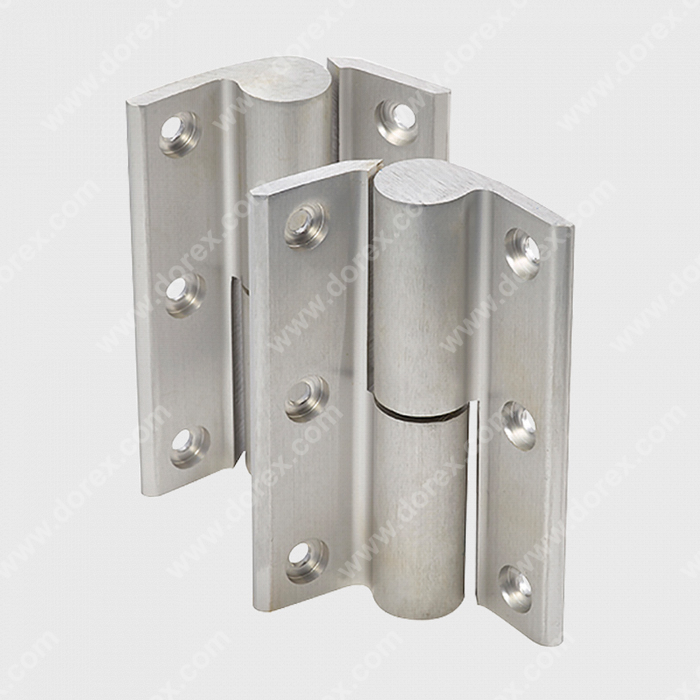

Dorex 1020 UNIVERSAL REPLACEMENT HINGE

• Non-handed
• Surface mounted
• For flush mounted or ¹⁄₈″ recessed doors
• Accommodates doors up to 300 lbs (136 kg)
• ¹⁄₈″ vertical door adjustment or ¹⁄₈″ recessed doors
• High quality anodized aluminum extrusion; precision machined
• Top and bottom bearing balls with two anti-friction roller bearings for smooth hinge pin rotation
• Easy and quick installation; instructions included with each set
• Each boxed set consists of:
  2 Hinges of 5” (127 mm) x 3 ¹⁄₄″ (82.6 mm)
  4 Adhesive cover strips
  2 Shim Plates ¹⁄₈″ (3.2 mm) offset (#1020S)
  1 Hex key
  12 Tamper-resistant fasteners
