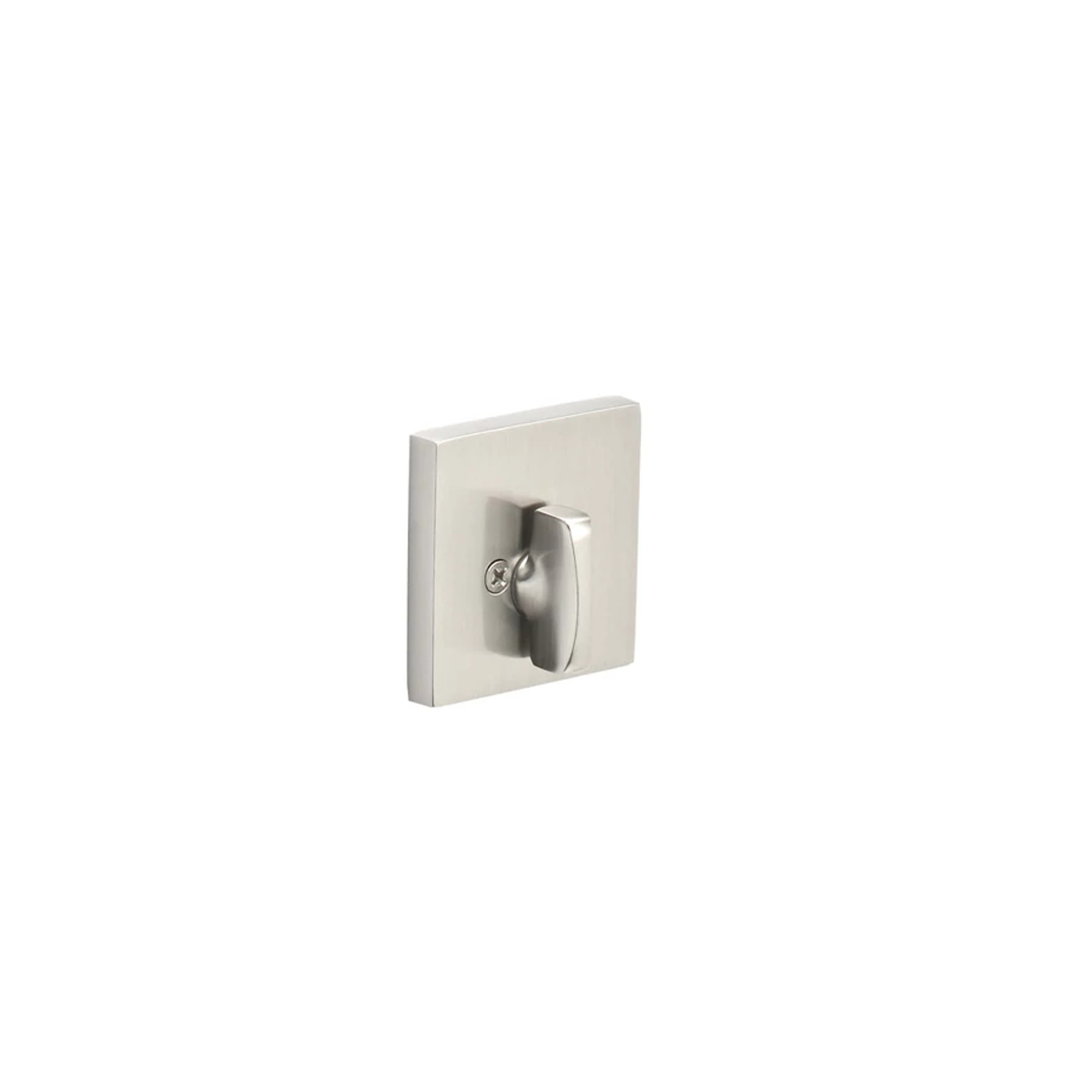

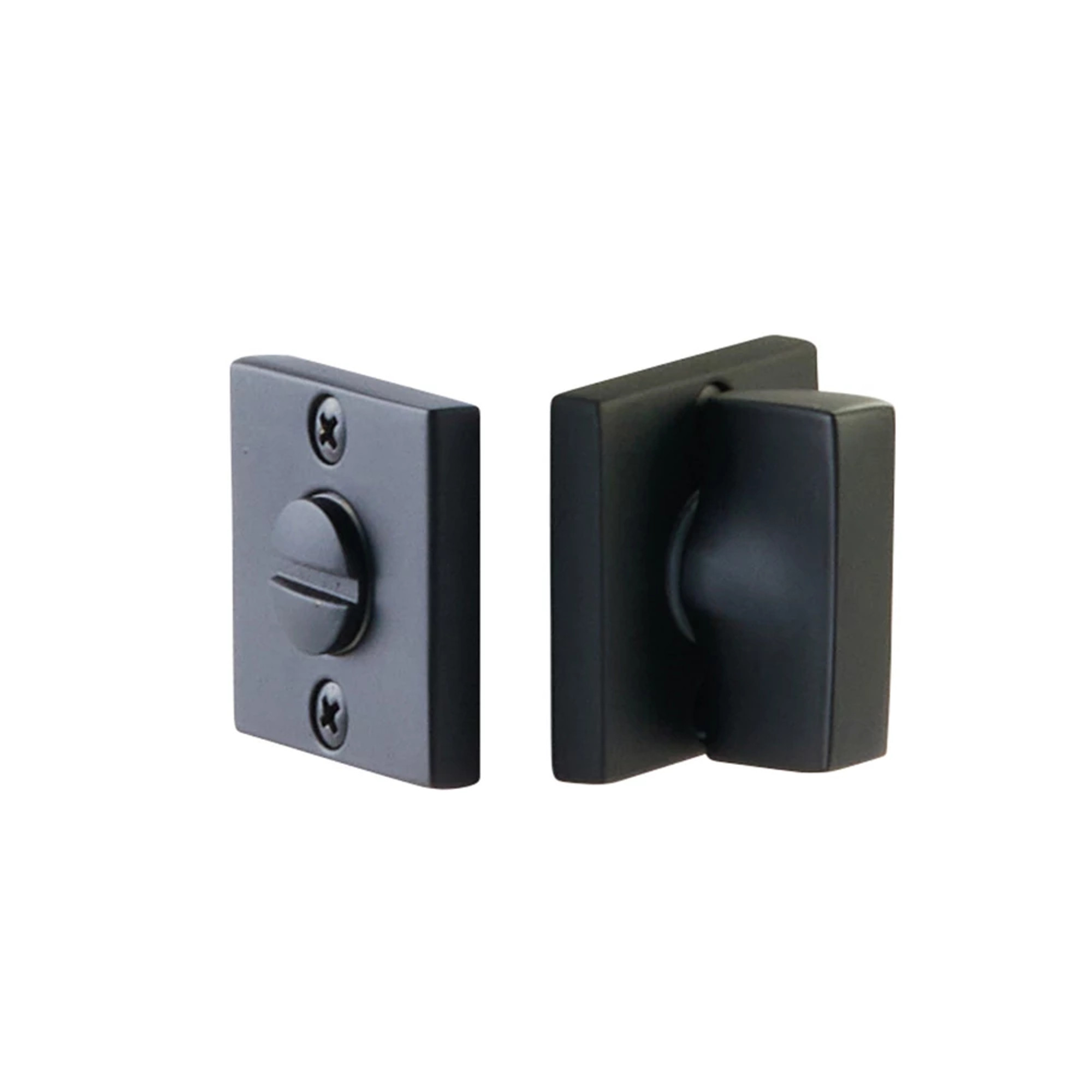

Emtek Square Single Cylinder Deadbolt

The Emtek Square single cylinder deadbolt provides keyed auxiliary security with selectable exterior trim finishes. Use it for new door prep, replacement deadbolt projects, or coordinating with an existing Emtek hardware set.

• Design: Single Cylinder deadbolt trim

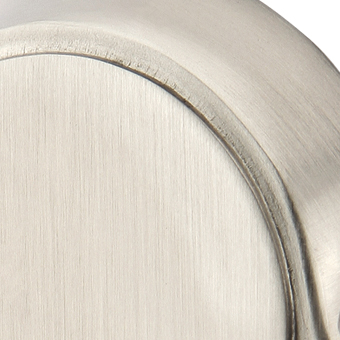

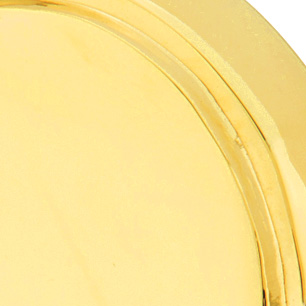

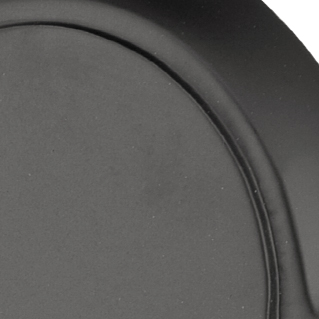

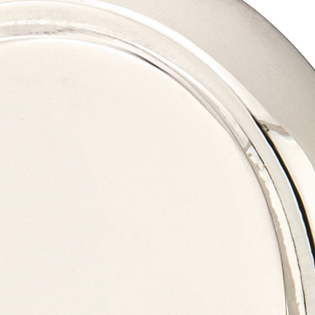

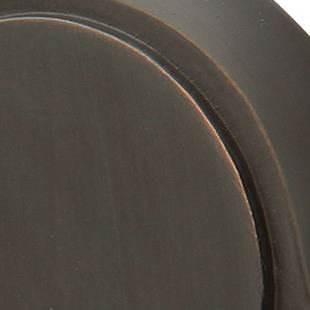

• Finishes: 8 – Flat Black (US19), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Polished Nickel (US14), Satin Brass (US4), Satin Nickel (US15), Unlacquered Brass (US3NL)
• Use: exterior doors, auxiliary locking, and replacement deadbolt hardware
• Order check: confirm cylinder function, door prep, and finish before checkout
• Warranty: lifetime mechanical warranty per Emtek where applicable

Keying Options

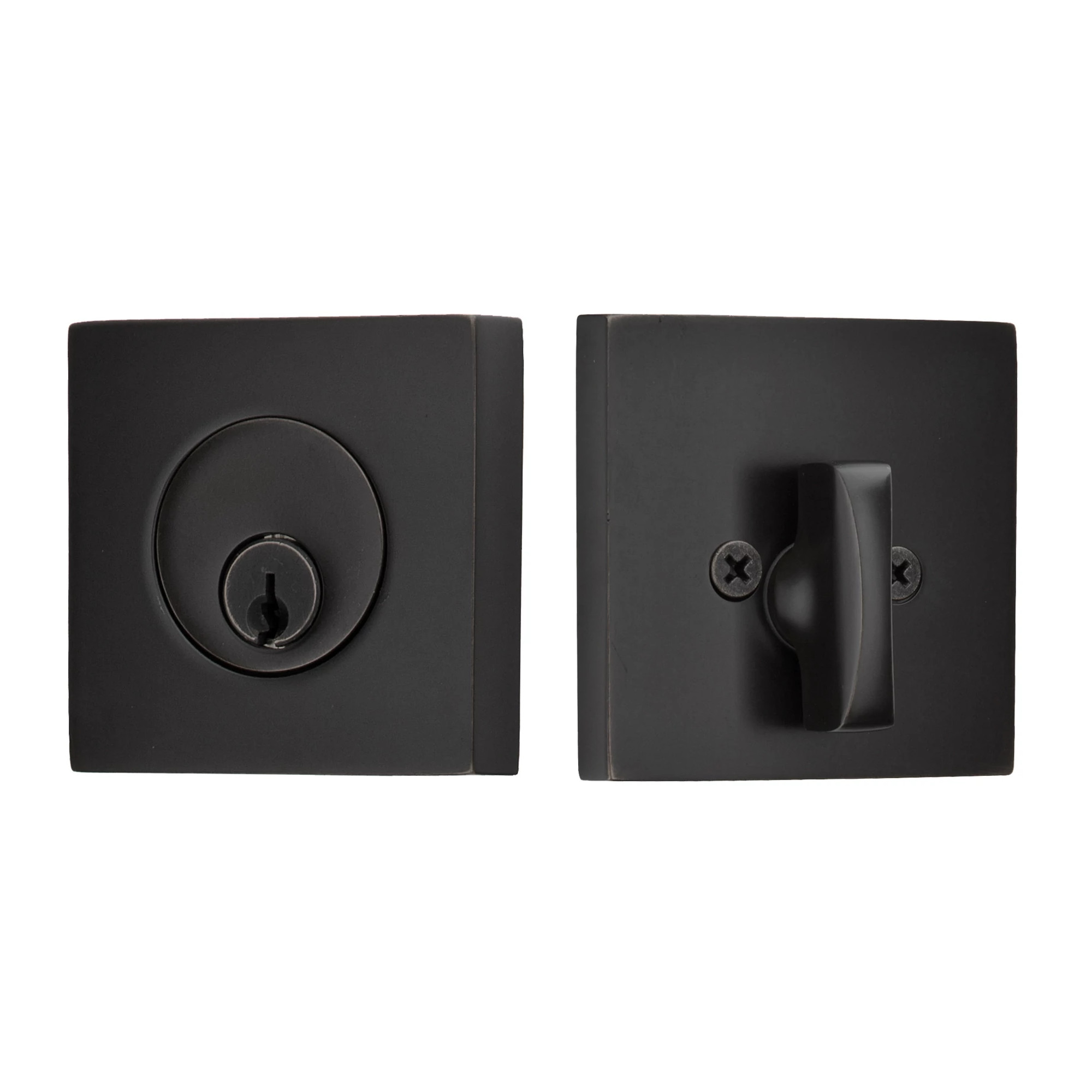

Single Cylinder Deadbolt – Keyed Different (8469 KD): each lock uses its own unique key. The deadbolt locks and unlocks from the outside by key and from the inside by thumb turn.

Single Cylinder Deadbolt – Keyed Alike (8469 KA): multiple locks in the same keyed-alike set can be operated by the same key. The deadbolt locks and unlocks from the outside by key and from the inside by thumb turn.

Specifications

• Standard 2-1/8" door prep and installation
• Solid brass cylinder, housing, collar, and rosette where applicable to the selected deadbolt function
• Hardened steel bolt
• Schlage C keyway for keyed-cylinder configurations
• Heavy gauge steel understrike and brass trim strike
• Standard latch is for 2-3/8" backset; specify 2-3/4" backset if required

Ordering Notes

Before ordering, confirm whether the opening needs single-cylinder, double-cylinder, or single-sided deadbolt operation. For keyed locks, choose Keyed Different when each lock should use its own key, or Keyed Alike when multiple locks should operate from the same key. Confirm 2-3/8" or 2-3/4" backset and standard 2-1/8" door prep before drilling.

Part Numbers

Base SKU:

• Square Single Cylinder Deadbolt: 8469

Finish-specific part numbers:

Keyed Different (KD) or Keyed Alike (KA) keying is specified at order time when applicable.
