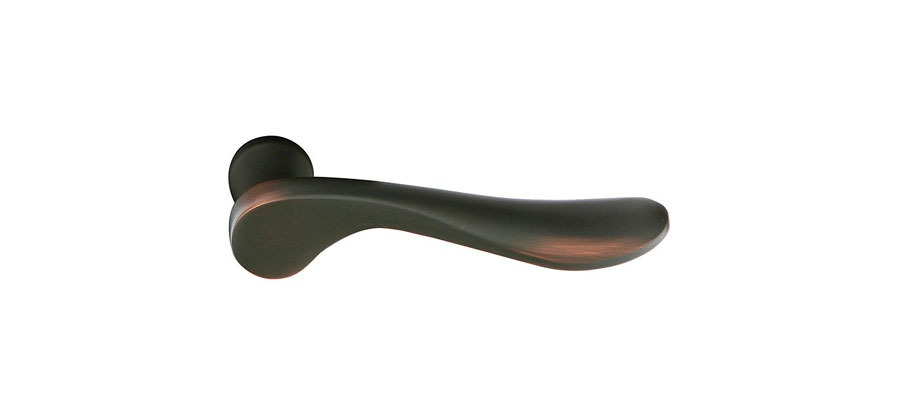

Emtek Luzern Lever

• Fits doors 1-1/4" to 2" thick with standard 2-1/8" bore prep
• 2-3/8" backset standard; 2-3/4" available — specify when ordering
• 17 rosette styles (16 standard rosettes + Stretto 1-1/2"×5")
• 10 finishes, including Unlacquered Brass (a living finish that patinas with use)
• Lancaster, Ribbon & Reed, and Rope rosettes not available in Flat Black (US19)
• Stretto 1-1/2"×5" rosette: Passage, Privacy, and Dummy Pair only (no Dummy Single)
• LH/RH (handing) is automatically applied to part numbers based on selection.
• Sold as complete set: rosette, latch, and strike plate included

Function Options

• Passage — closets/hallways/pantries; latch only, no lock
• Privacy — bedrooms/bathrooms; thumbturn lock + emergency pin unlock
• Dummy — French-pair inactive door / pull-only; non-functional surface mount

Part Numbers for Emtek Luzern Lever

• #8 — Passage: 8108LU · Privacy: 8208LU · Dummy: 8058LU

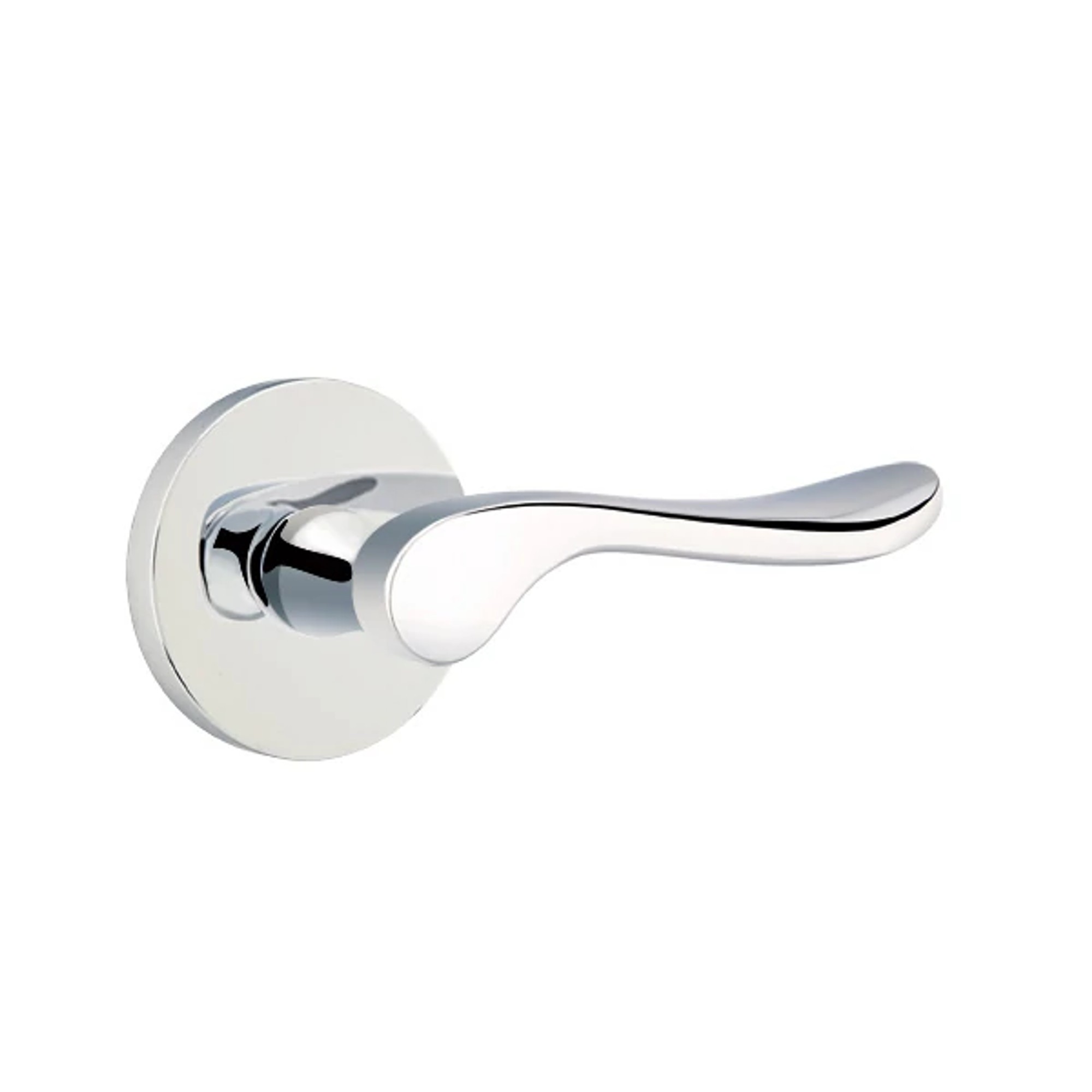

• Disk — Passage: 5109LU · Privacy: 5209LU · Dummy: 5059LU
• Lancaster — Passage: 8106LU · Privacy: 8206LU · Dummy: 8056LU

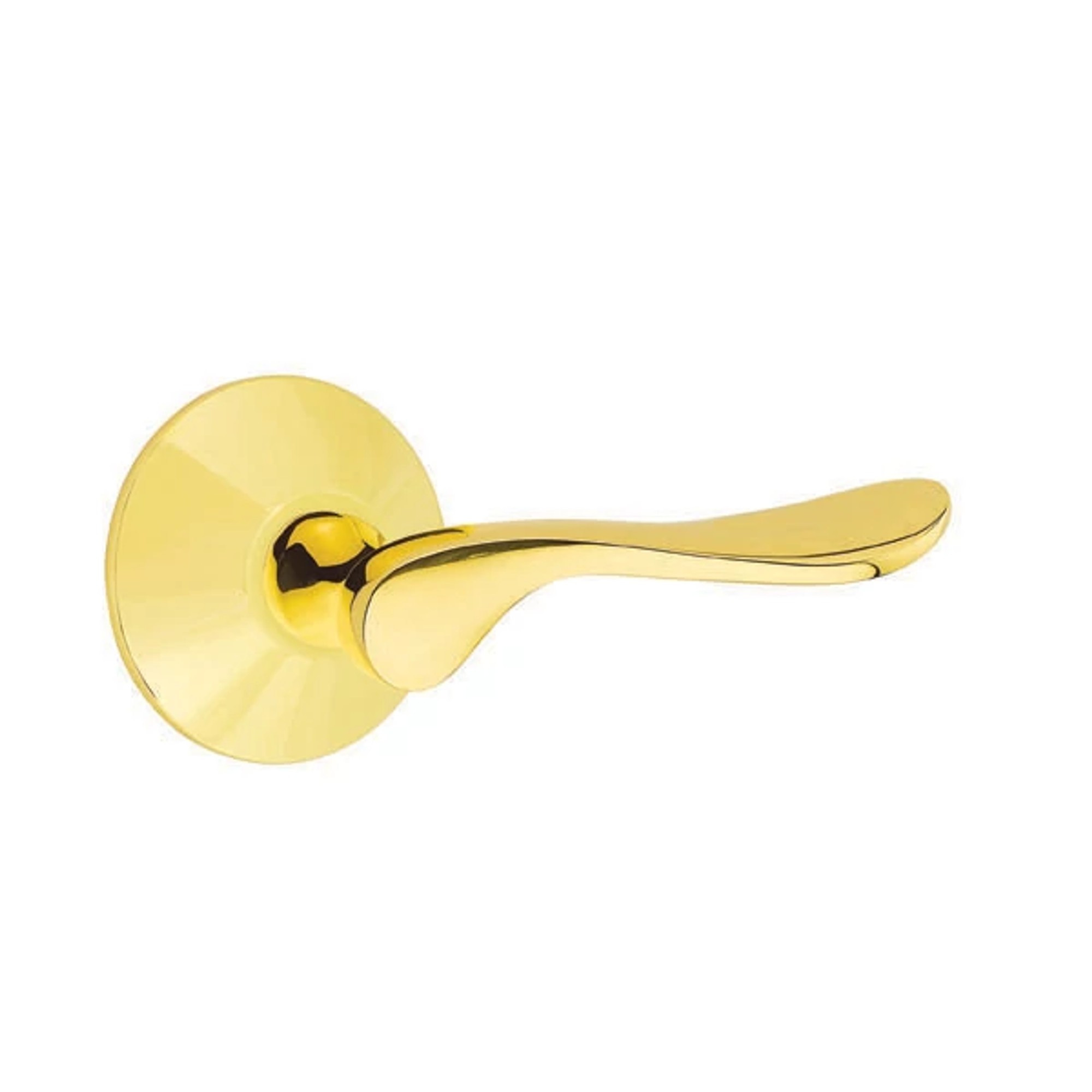

• Modern — Passage: 5107LU · Privacy: 5207LU · Dummy: 5057LU

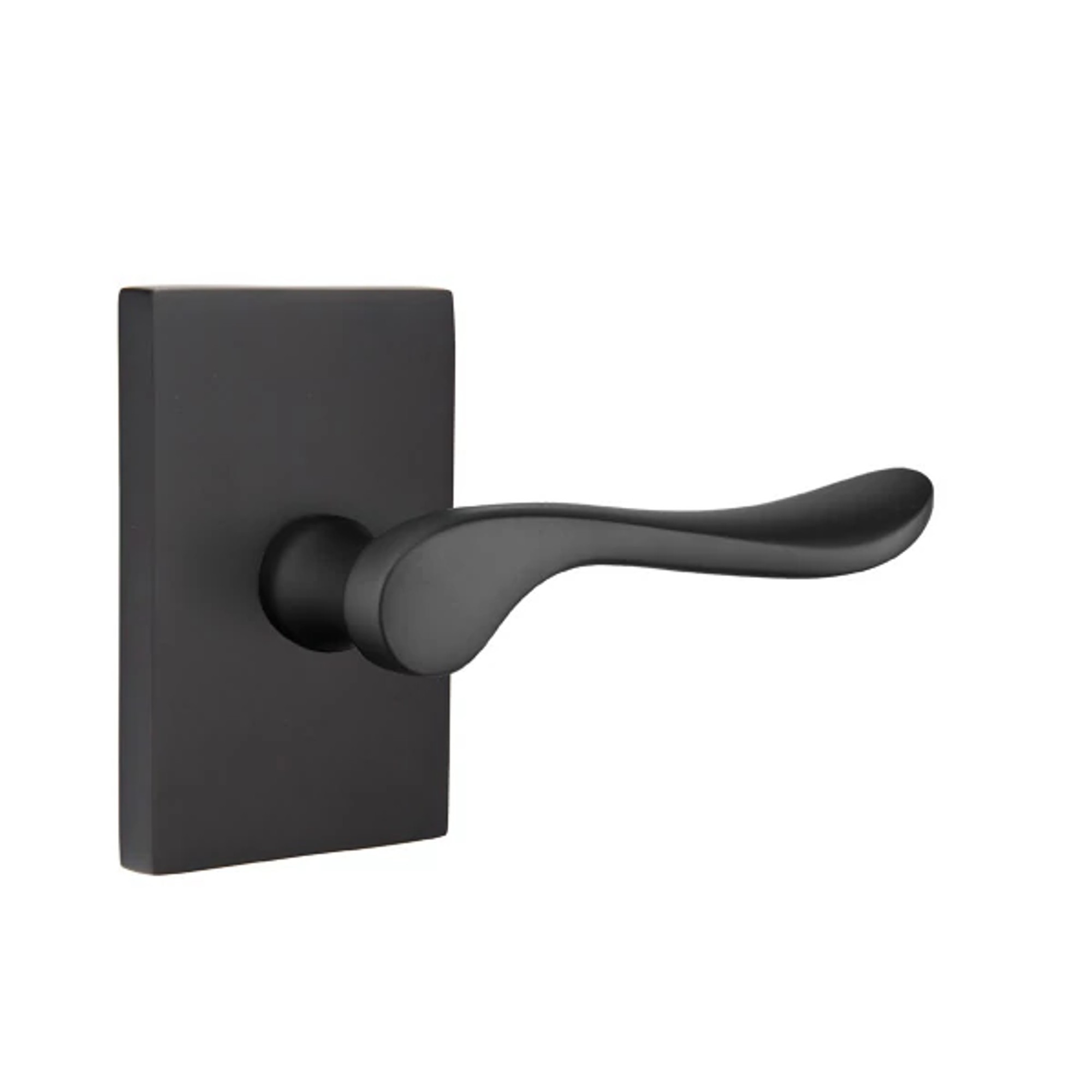

• Modern Rectangular — Passage: 5112LU · Privacy: 5212LU · Dummy: 5052LU

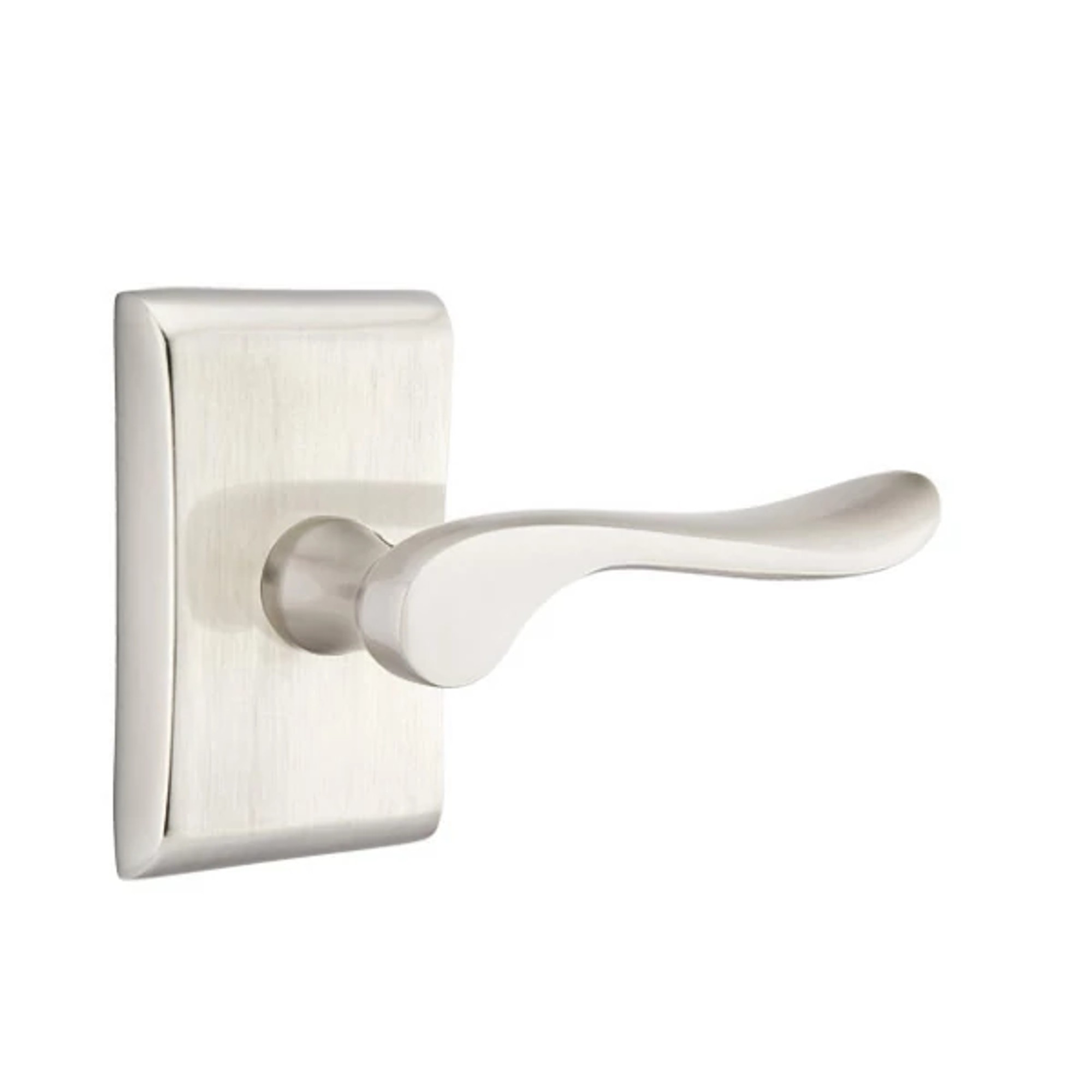

• Neos — Passage: 5111LU · Privacy: 5211LU · Dummy: 5051LU

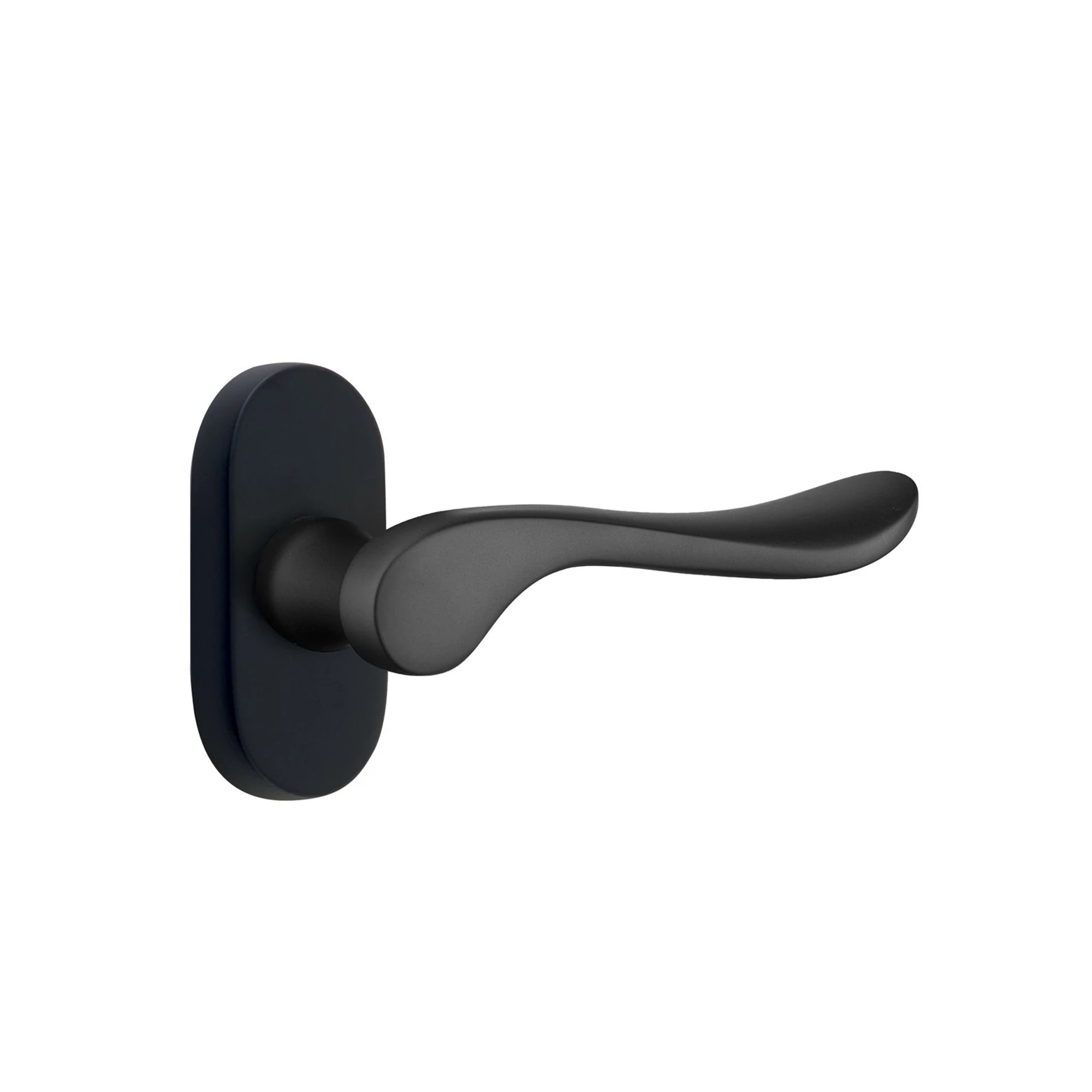

• Oval — Passage: 8120LU · Privacy: 8220LU · Dummy: 8520LU

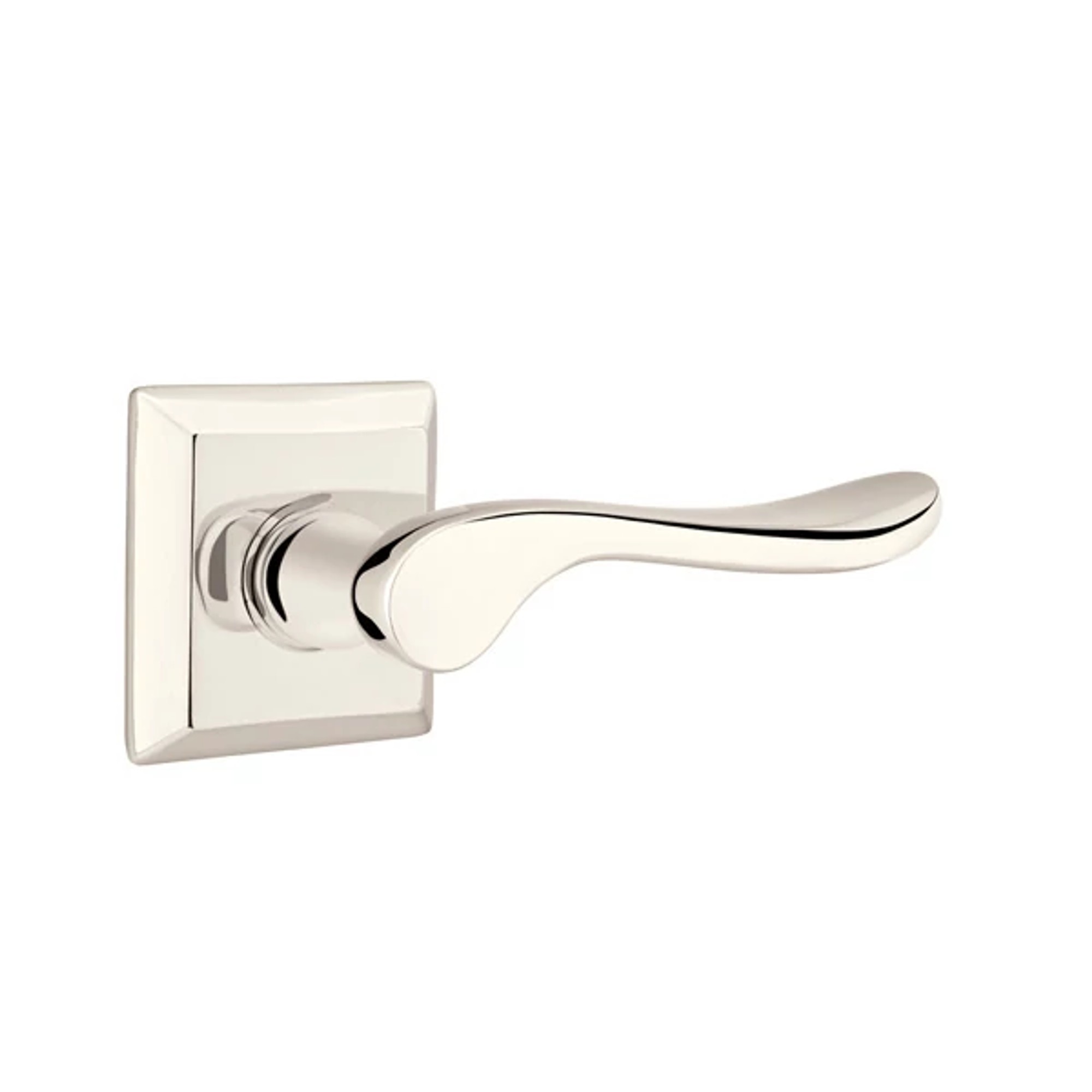

• Quincy — Passage: 8131LU · Privacy: 8231LU · Dummy: 8531LU
• Rectangular — Passage: 8121LU · Privacy: 8221LU · Dummy: 8521LU
• Regular — Passage: 8100LU · Privacy: 8200LU · Dummy: 8050LU
• Ribbon & Reed — Passage: 8107LU · Privacy: 8207LU · Dummy: 8057LU
• Rope — Passage: 8101LU · Privacy: 8201LU · Dummy: 8051LU

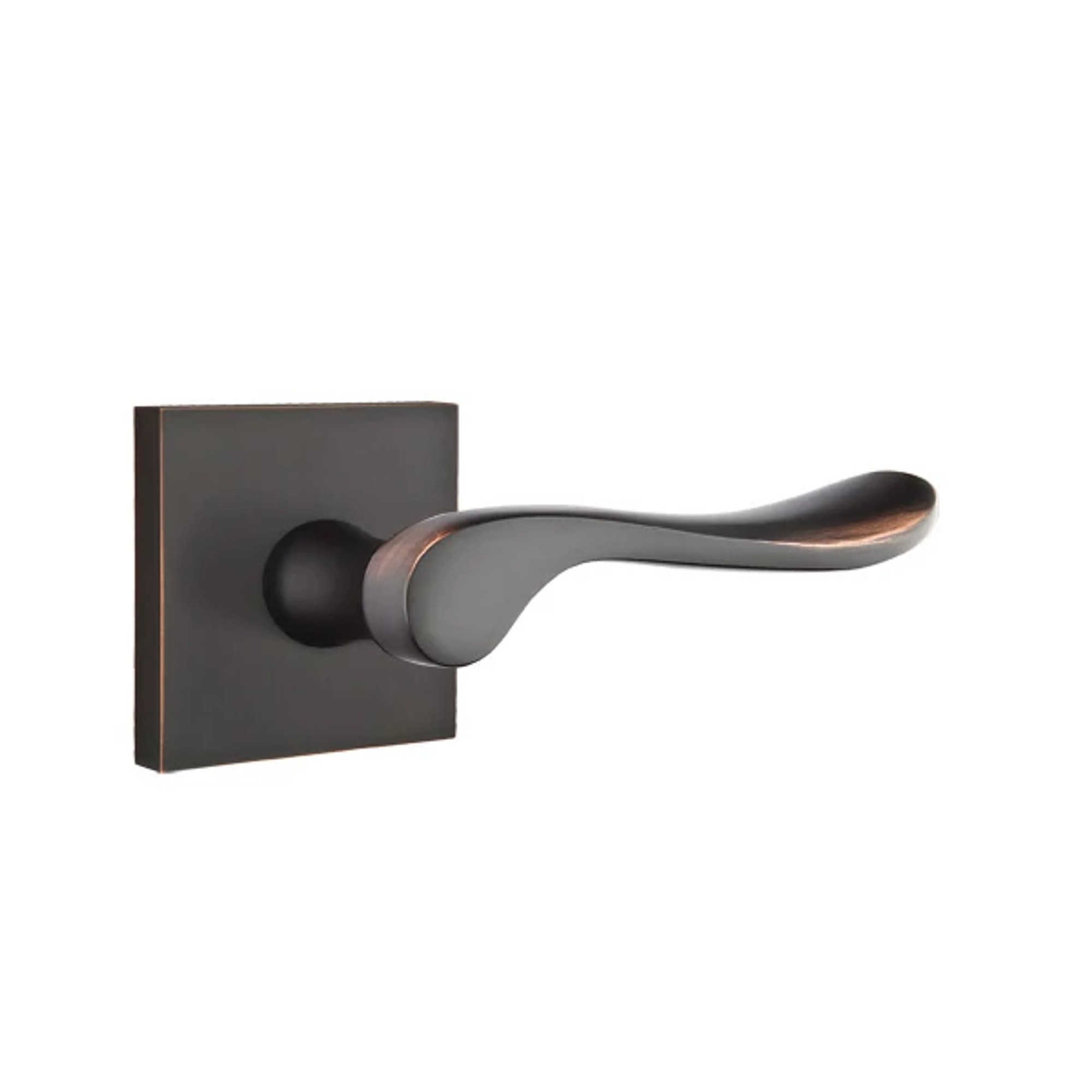

• Square — Passage: 5110LU · Privacy: 5210LU · Dummy: 5050LU

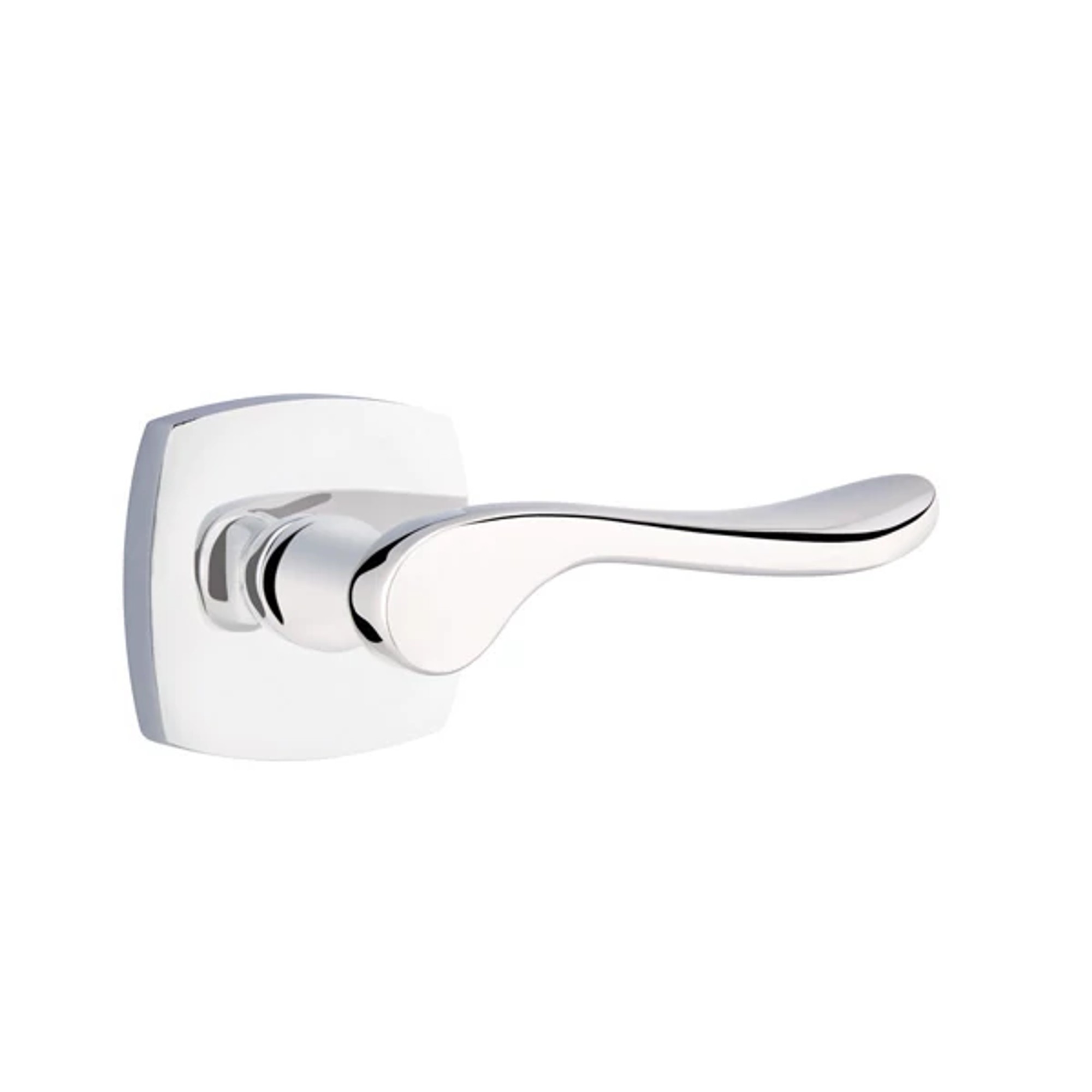

• Urban Modern — Passage: 5316LU · Privacy: 5326LU · Dummy: 5306LU
• Watford — Passage: 8110LU · Privacy: 8210LU · Dummy: 8510LU

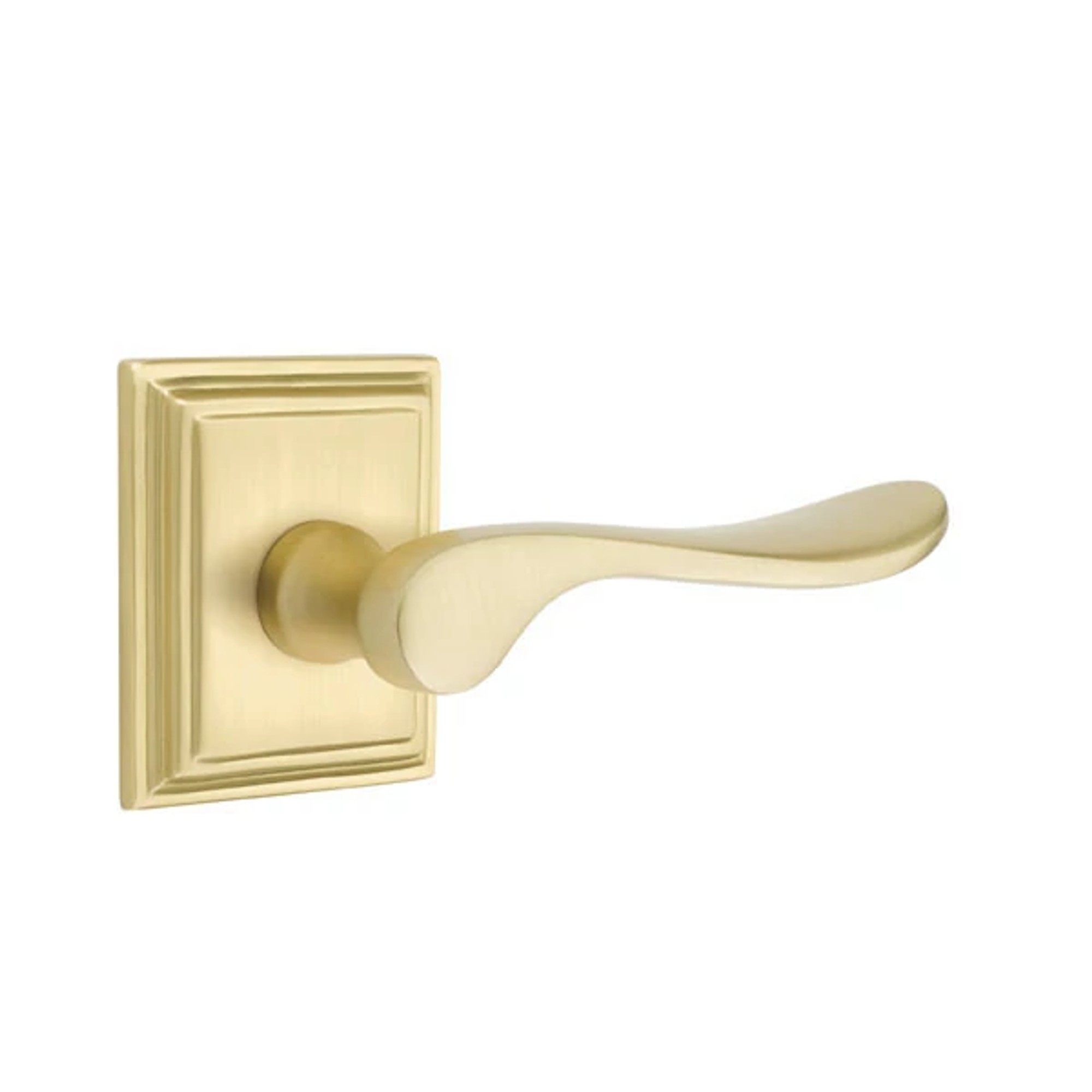

• Wilshire — Passage: 8161LU · Privacy: 8261LU · Dummy: 8561LU

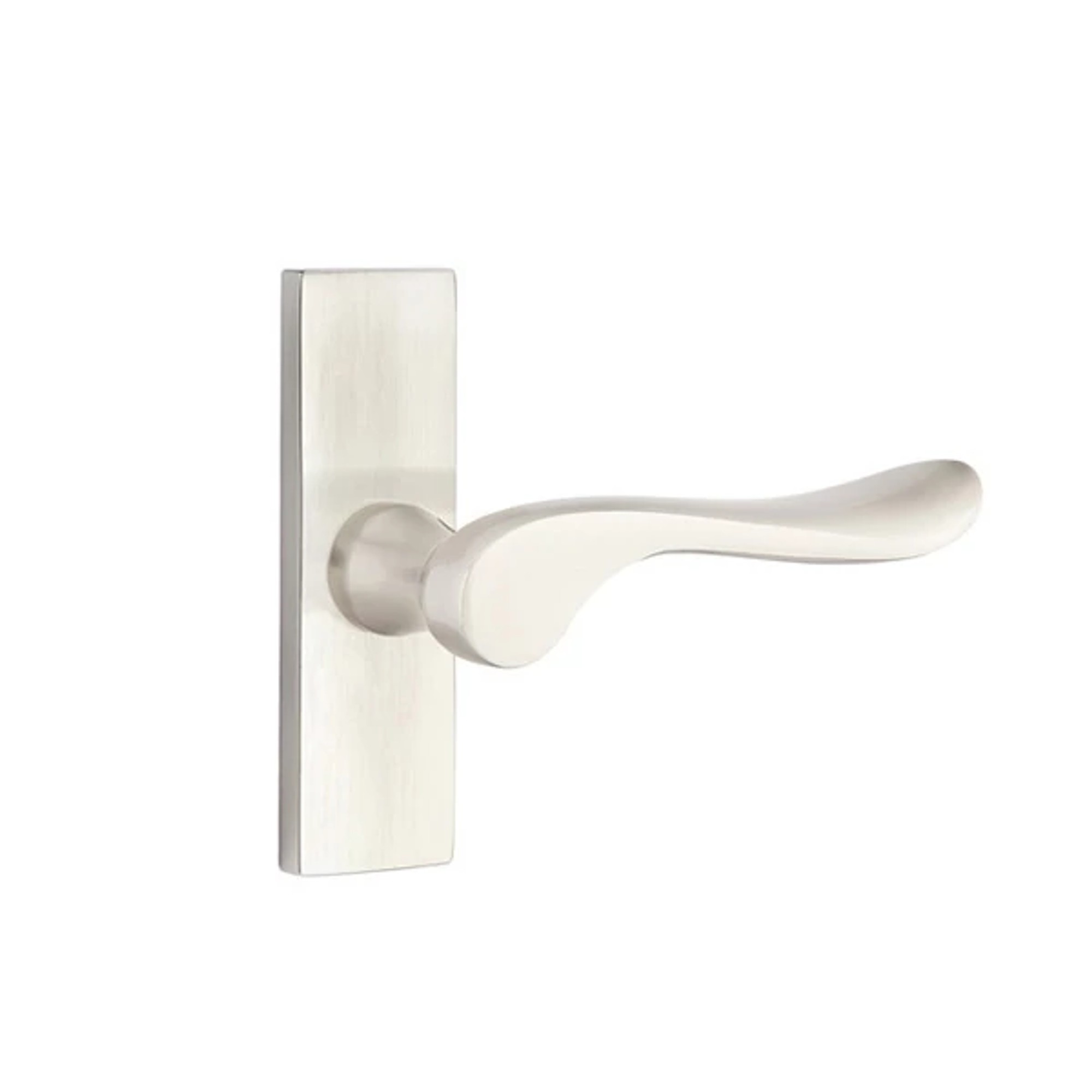

• Stretto 1-1/2″×5″ — Passage: 5507LU · Privacy: 5607LU · Dummy Pair: 5007LU
