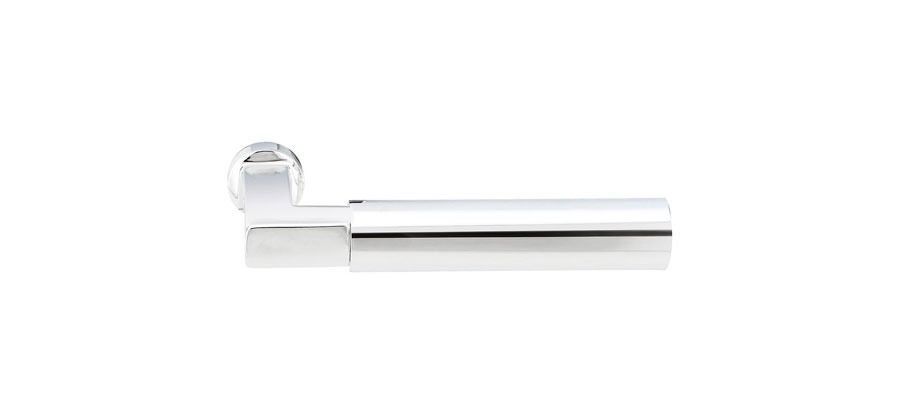

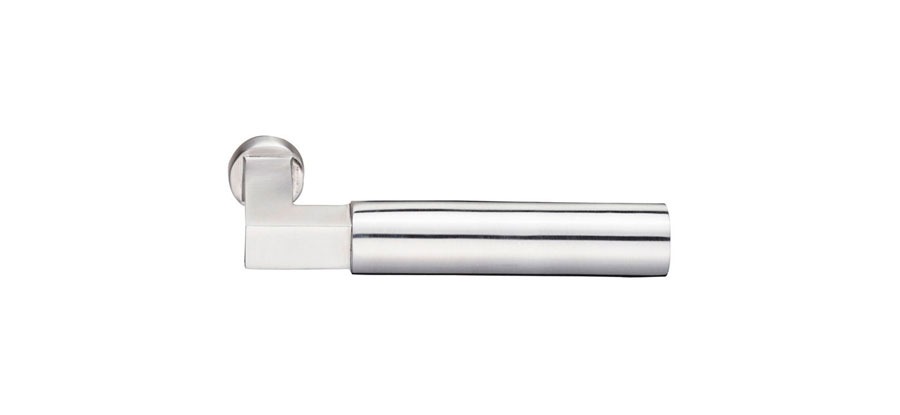

Emtek Hercules Lever

• Fits doors 1-1/4" to 2" thick with standard 2-1/8" bore prep
• 2-3/8" backset standard; 2-3/4" available — specify when ordering
• 17 rosette styles (16 standard rosettes + Stretto 1-1/2"×5")
• 10 finishes, including Unlacquered Brass (a living finish that patinas with use)
• Lancaster, Ribbon & Reed, and Rope rosettes not available in Flat Black (US19)
• Stretto 1-1/2"×5" rosette: Passage, Privacy, and Dummy Pair only (no Dummy Single)
• Stretto 1-1/2″×5″ rosette requires 1-1/4″ bore with 2-hole door prep.
• LH/RH (handing) is automatically applied to part numbers based on selection.
• Sold as complete set: rosette, latch, and strike plate included

Function Options

• Passage — closets/hallways/pantries; latch only, no lock
• Privacy — bedrooms/bathrooms; thumbturn lock + emergency pin unlock
• Dummy — French-pair inactive door / pull-only; non-functional surface mount

Part Numbers for Emtek Hercules Lever

• #8 — Passage: 8108HEC · Privacy: 8208HEC · Dummy: 8058HEC

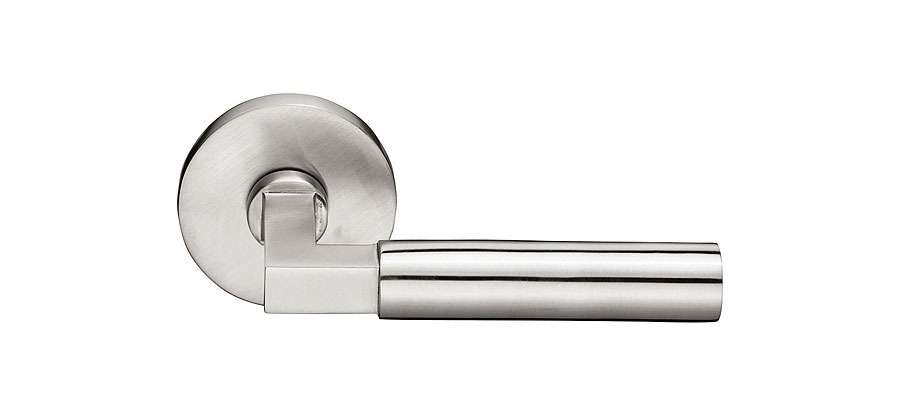

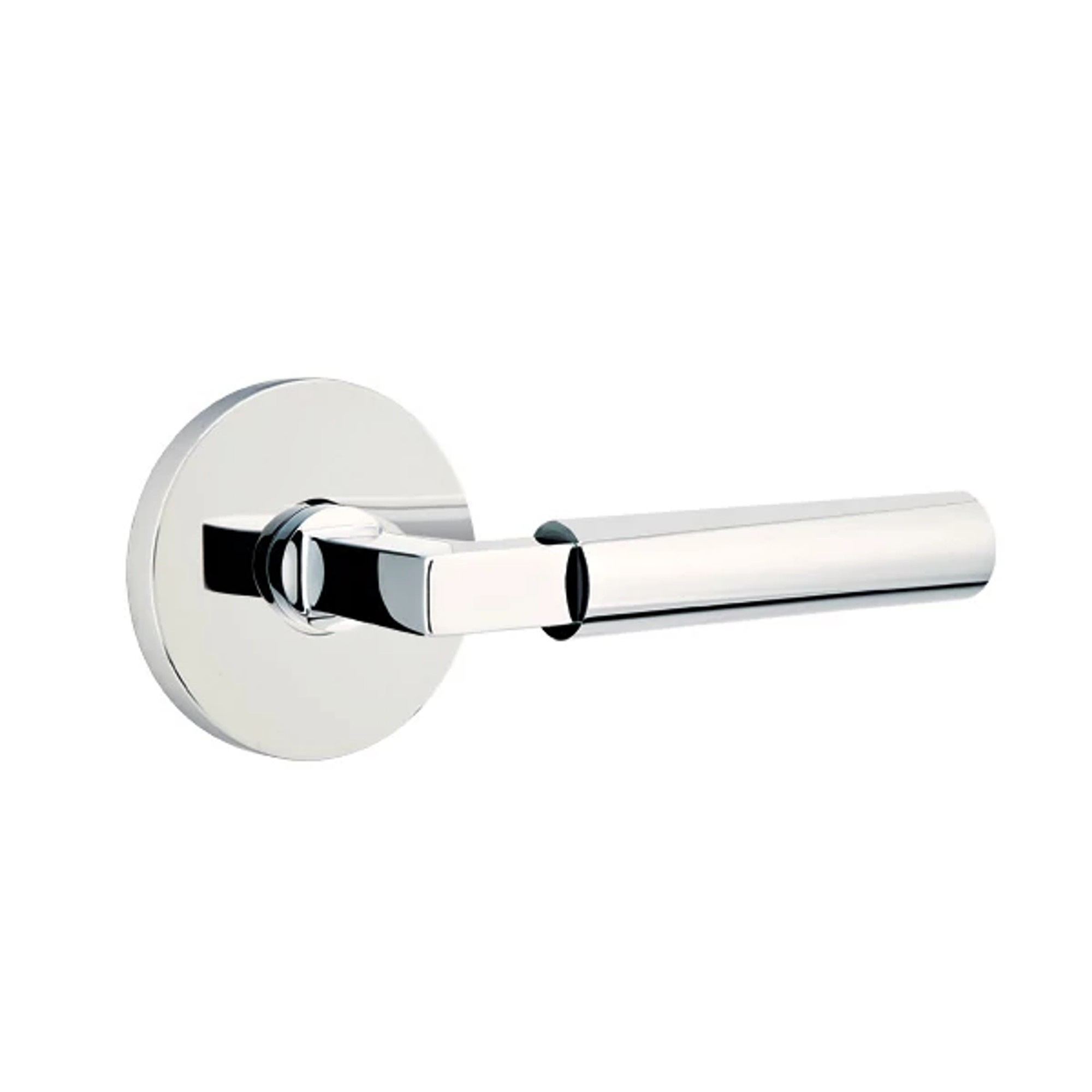

• Disk — Passage: 5109HEC · Privacy: 5209HEC · Dummy: 5059HEC
• Lancaster — Passage: 8106HEC · Privacy: 8206HEC · Dummy: 8056HEC

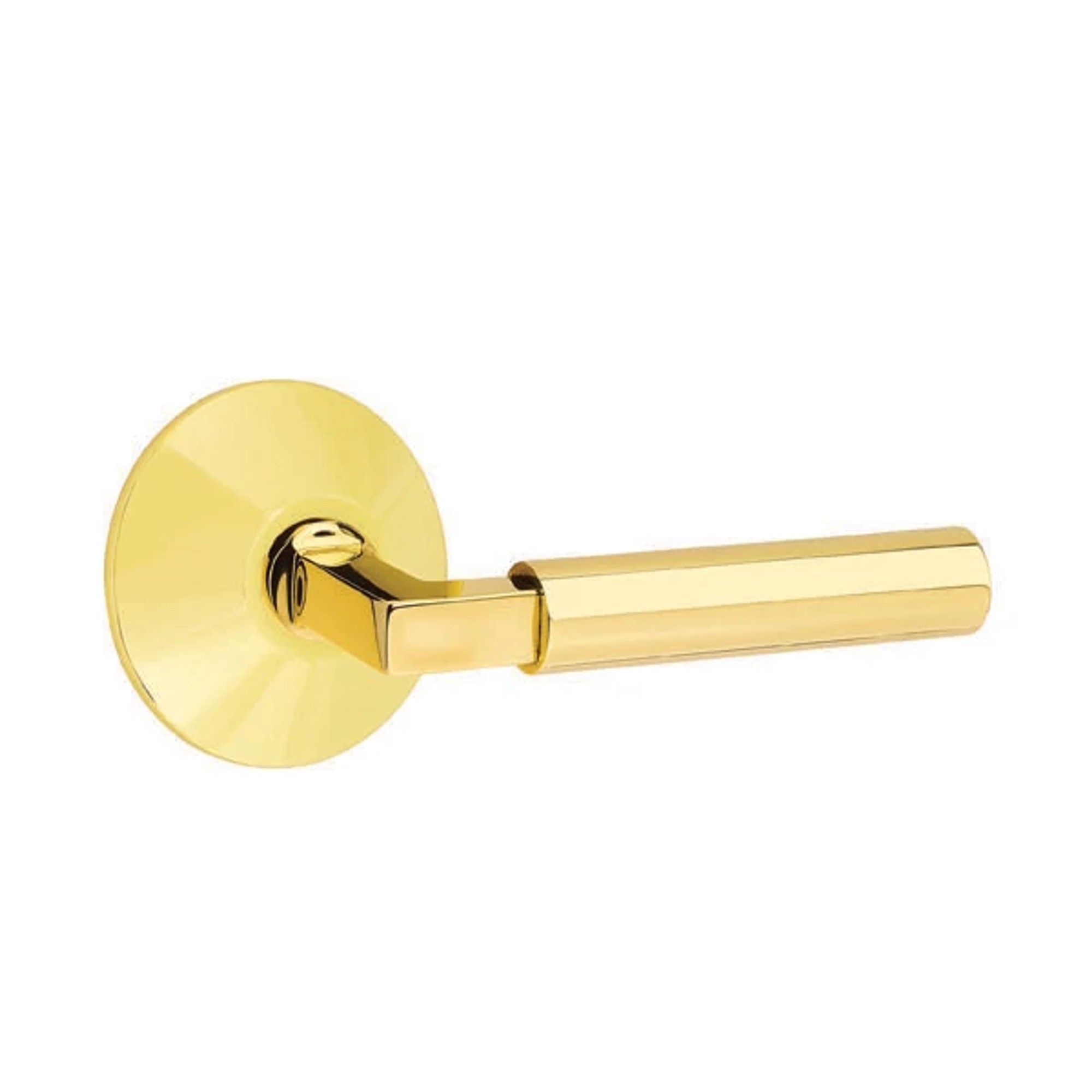

• Modern — Passage: 5107HEC · Privacy: 5207HEC · Dummy: 5057HEC

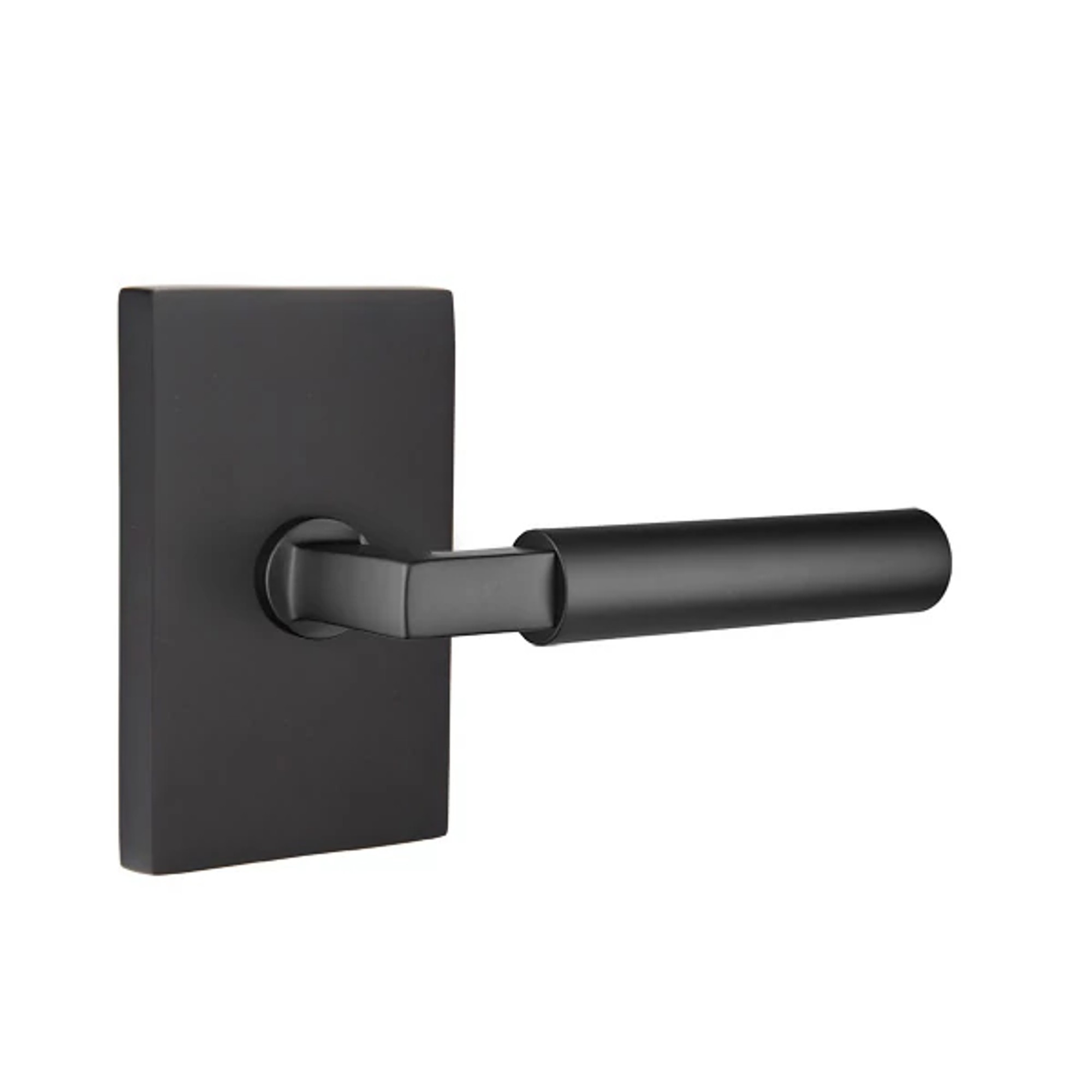

• Modern Rectangular — Passage: 5112HEC · Privacy: 5212HEC · Dummy: 5052HEC

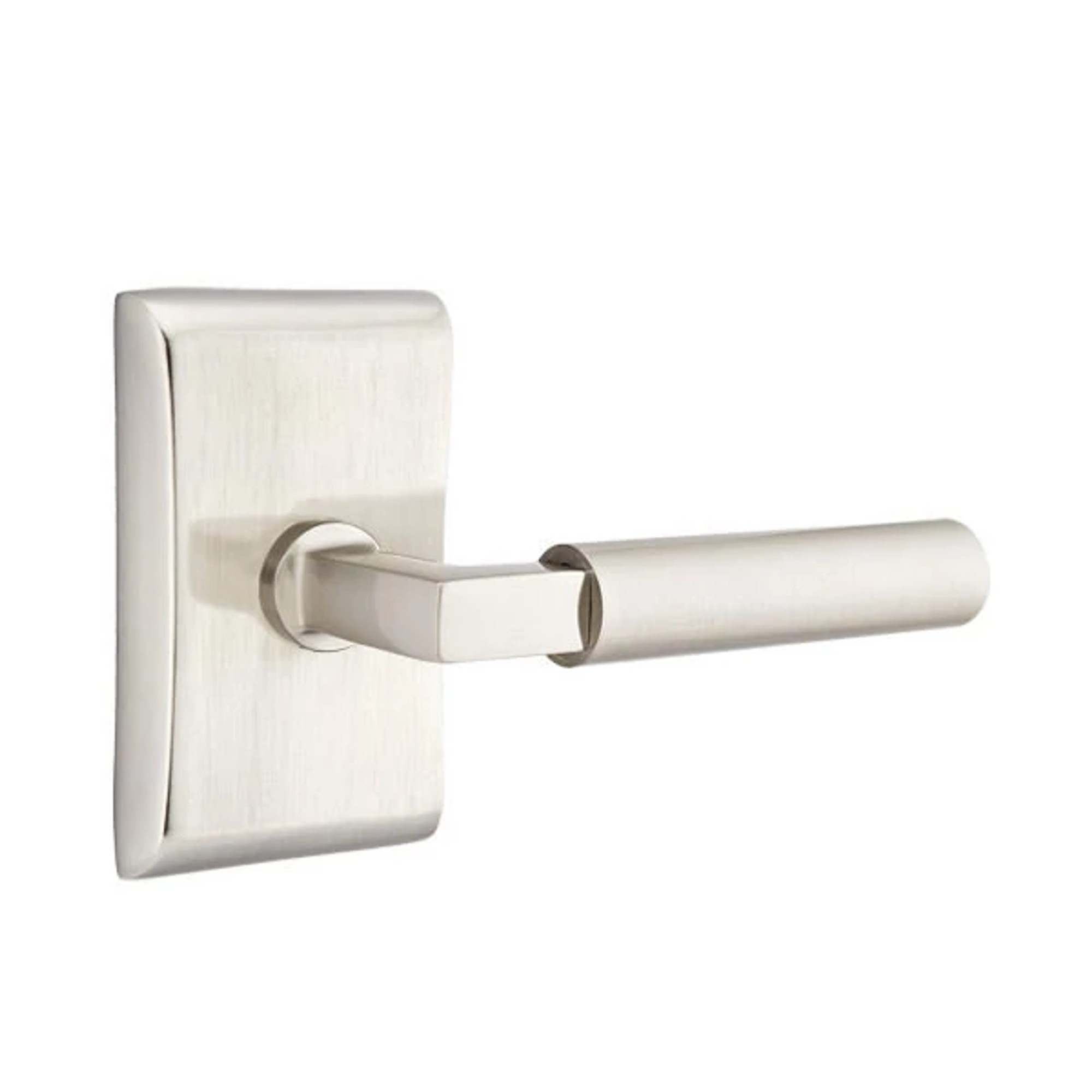

• Neos — Passage: 5111HEC · Privacy: 5211HEC · Dummy: 5051HEC

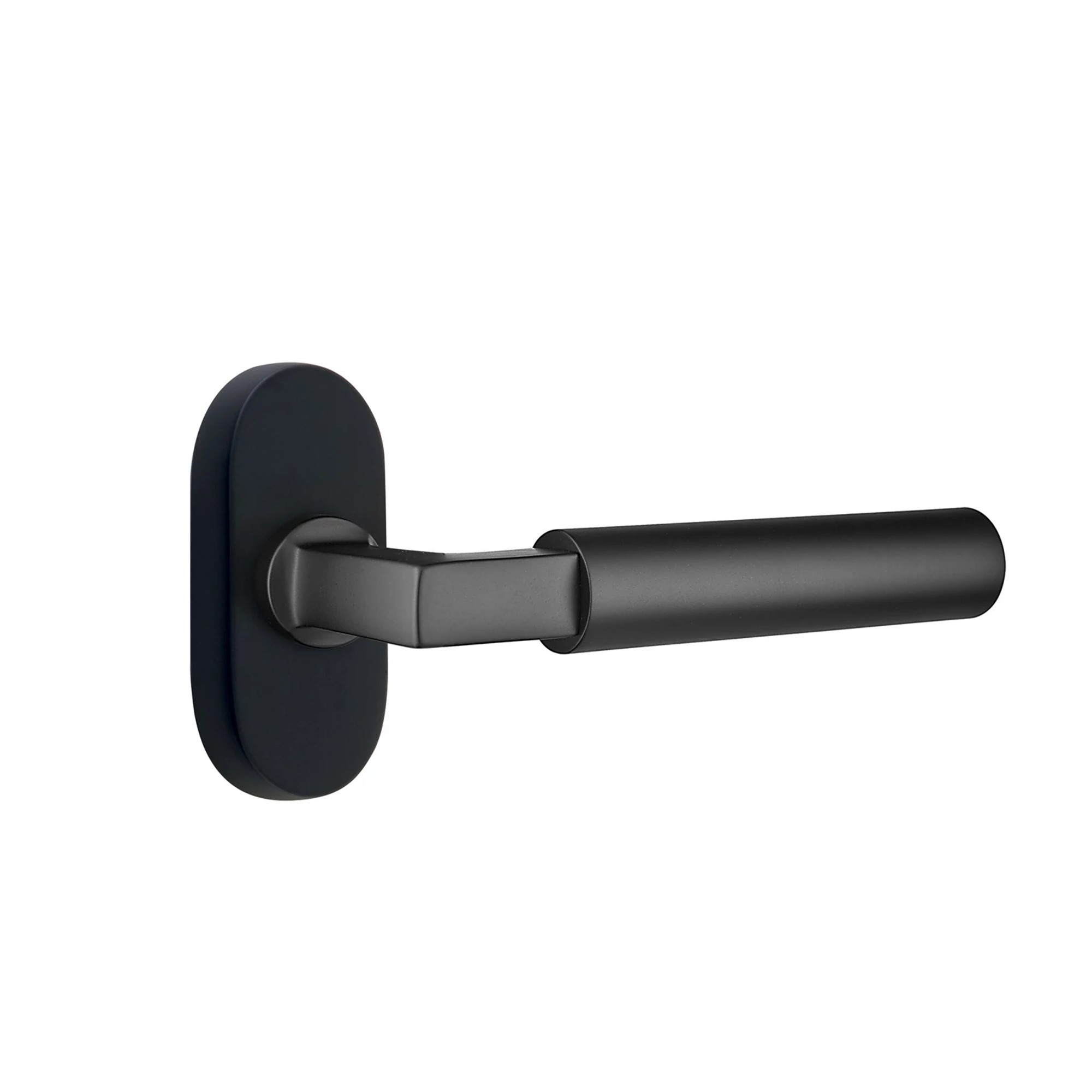

• Oval — Passage: 8120HEC · Privacy: 8220HEC · Dummy: 8520HEC

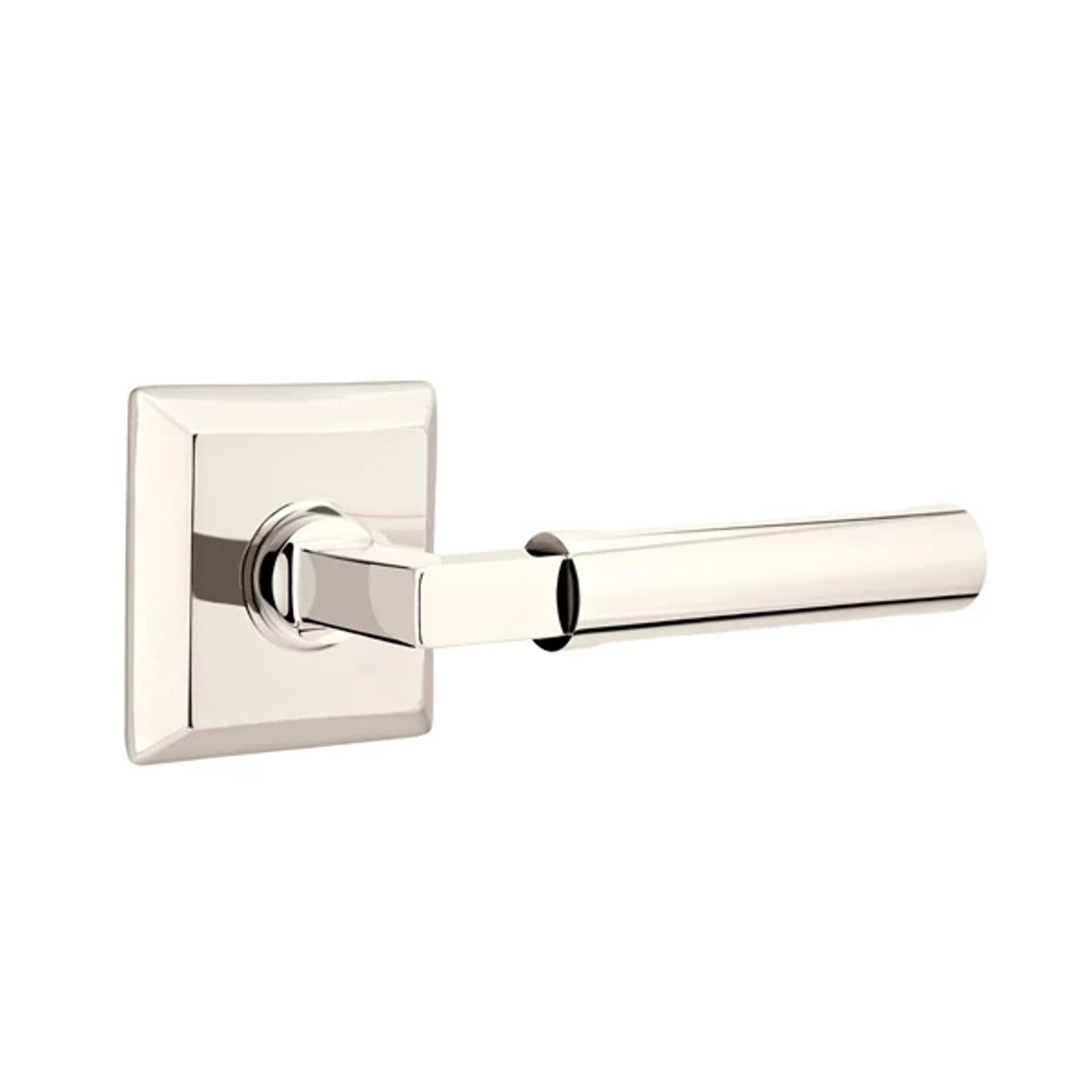

• Quincy — Passage: 8131HEC · Privacy: 8231HEC · Dummy: 8531HEC
• Rectangular — Passage: 8121HEC · Privacy: 8221HEC · Dummy: 8521HEC
• Regular — Passage: 8100HEC · Privacy: 8200HEC · Dummy: 8050HEC
• Ribbon & Reed — Passage: 8107HEC · Privacy: 8207HEC · Dummy: 8057HEC
• Rope — Passage: 8101HEC · Privacy: 8201HEC · Dummy: 8051HEC

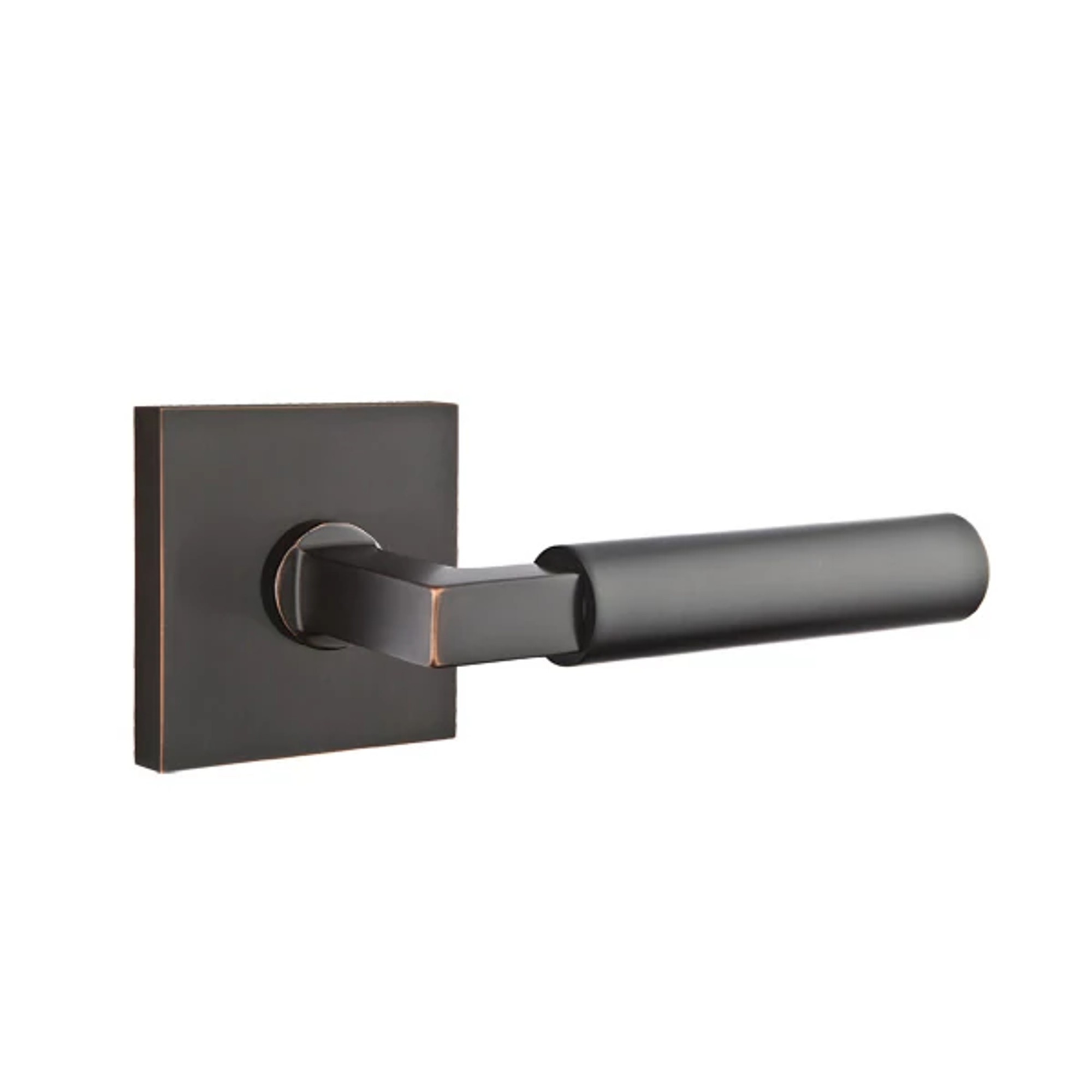

• Square — Passage: 5110HEC · Privacy: 5210HEC · Dummy: 5050HEC

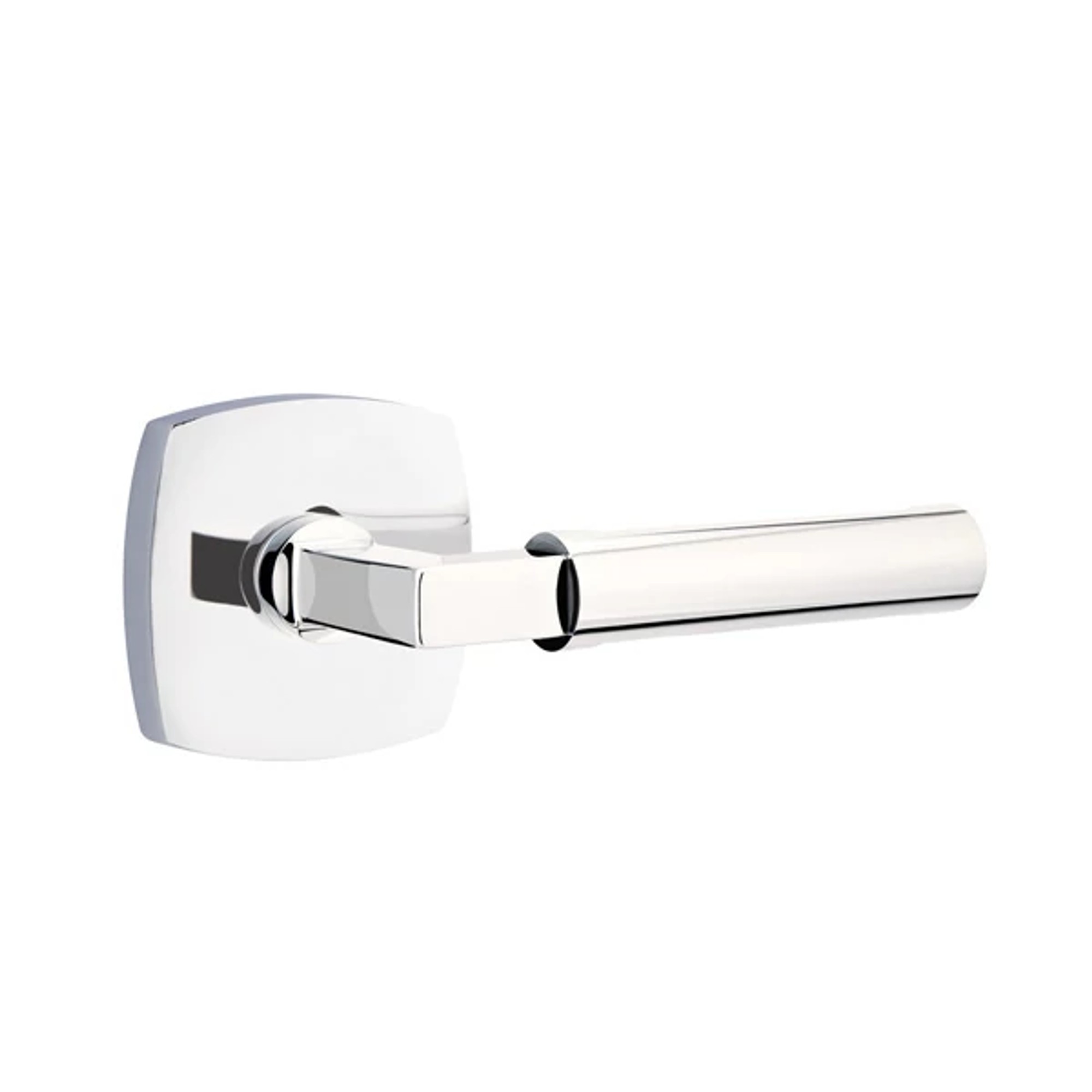

• Urban Modern — Passage: 5316HEC · Privacy: 5326HEC · Dummy: 5306HEC
• Watford — Passage: 8110HEC · Privacy: 8210HEC · Dummy: 8510HEC

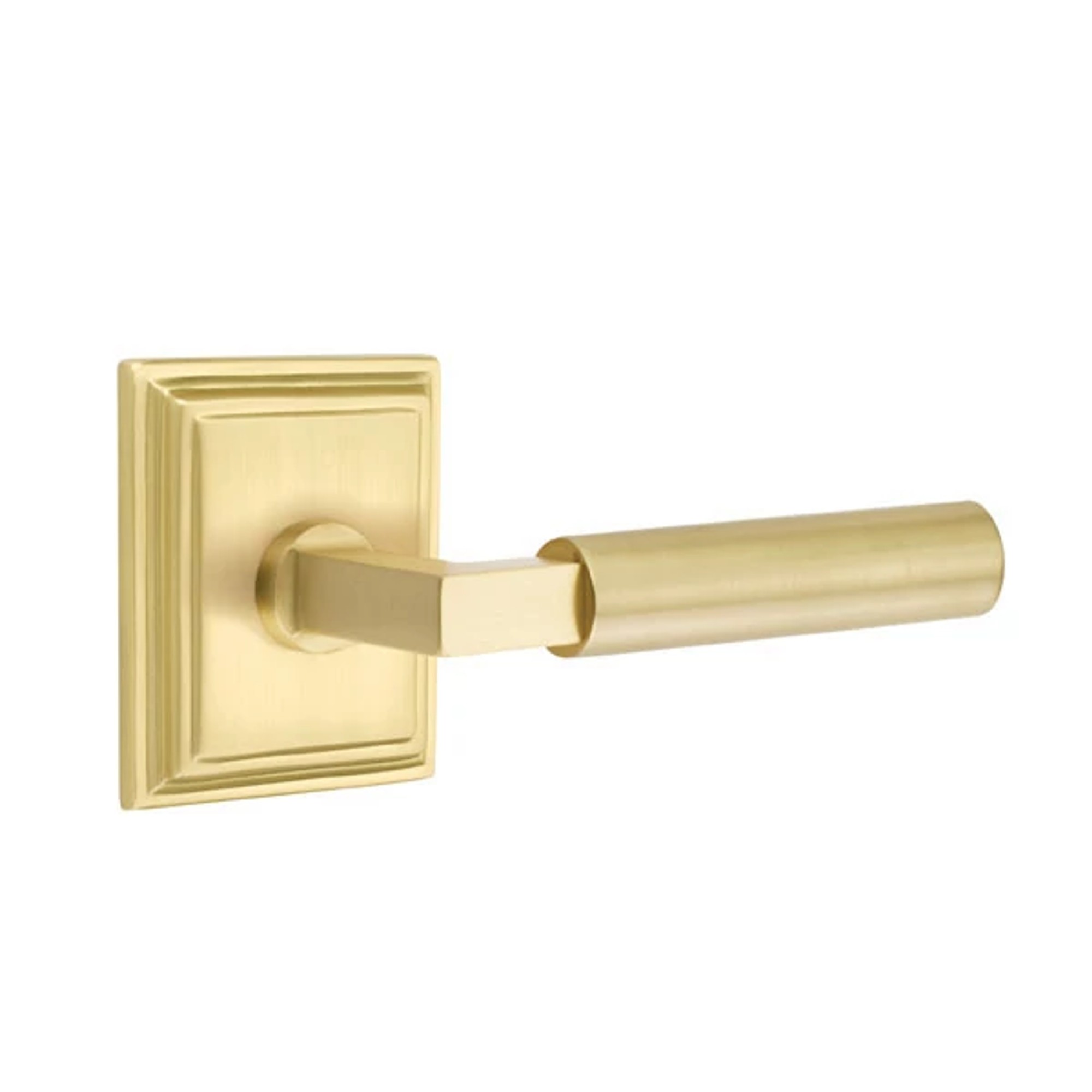

• Wilshire — Passage: 8161HEC · Privacy: 8261HEC · Dummy: 8561HEC

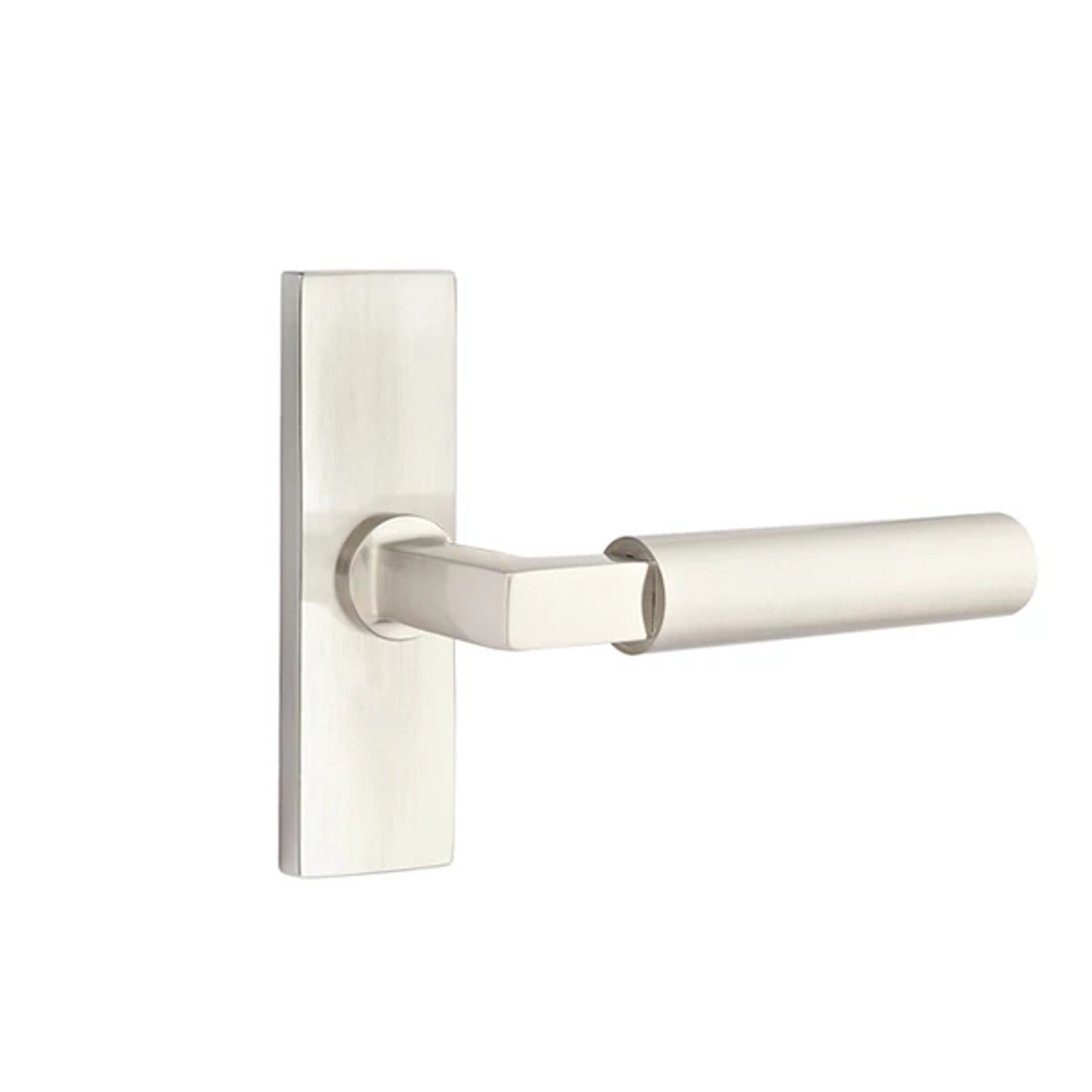

• Stretto 1-1/2″×5″ — Passage: 5507HEC · Privacy: 5607HEC · Dummy Pair: 5007HEC
