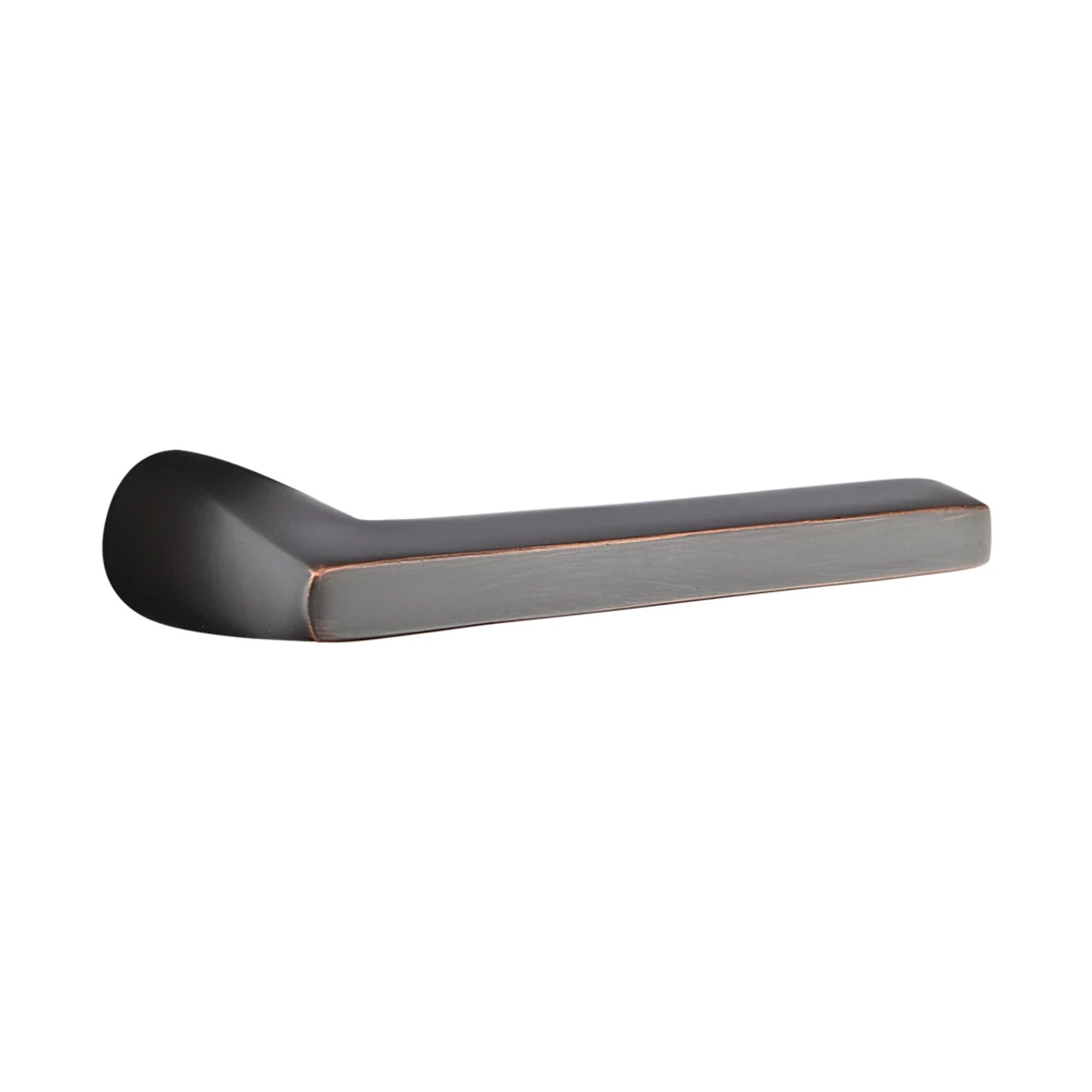

Emtek Helios Lever

• Fits doors 1-1/4" to 2" thick with standard 2-1/8" bore prep
• 2-3/8" backset standard; 2-3/4" available — specify when ordering
• 17 rosette styles (16 standard rosettes + Stretto 1-1/2"×5")
• 10 finishes, including Unlacquered Brass (a living finish that patinas with use)
• Lancaster, Ribbon & Reed, and Rope rosettes not available in Flat Black (US19)

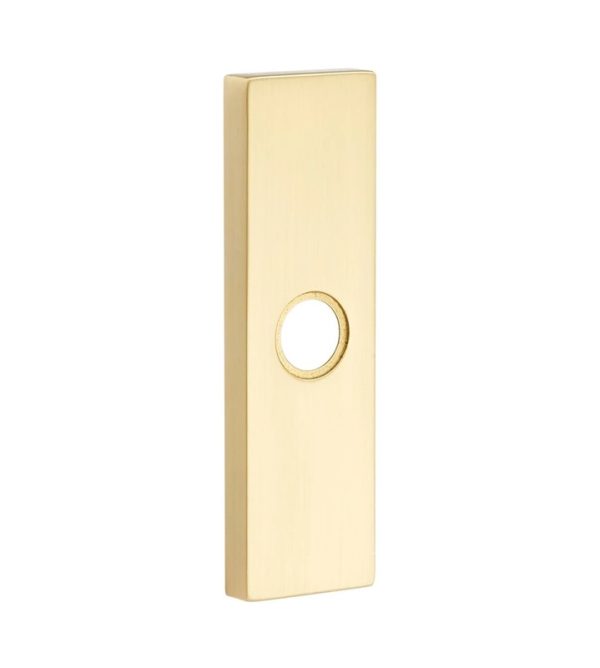

• Stretto 1-1/2"×5" rosette: Passage, Privacy, and Dummy Pair only (no Dummy Single)
• LH/RH (handing) is automatically applied to part numbers based on selection.
• Sold as complete set: rosette, latch, and strike plate included

Function Options

• Passage — closets/hallways/pantries; latch only, no lock
• Privacy — bedrooms/bathrooms; thumbturn lock + emergency pin unlock
• Dummy — French-pair inactive door / pull-only; non-functional surface mount

Part Numbers for Emtek Helios Lever

• #8 — Passage: 8108HLO · Privacy: 8208HLO · Dummy: 8058HLO
• Disk — Passage: 5109HLO · Privacy: 5209HLO · Dummy: 5059HLO
• Lancaster — Passage: 8106HLO · Privacy: 8206HLO · Dummy: 8056HLO
• Modern — Passage: 5107HLO · Privacy: 5207HLO · Dummy: 5057HLO
• Modern Rectangular — Passage: 5112HLO · Privacy: 5212HLO · Dummy: 5052HLO
• Neos — Passage: 5111HLO · Privacy: 5211HLO · Dummy: 5051HLO
• Oval — Passage: 8120HLO · Privacy: 8220HLO · Dummy: 8520HLO
• Quincy — Passage: 8131HLO · Privacy: 8231HLO · Dummy: 8531HLO
• Rectangular — Passage: 8121HLO · Privacy: 8221HLO · Dummy: 8521HLO
• Regular — Passage: 8100HLO · Privacy: 8200HLO · Dummy: 8050HLO
• Ribbon & Reed — Passage: 8107HLO · Privacy: 8207HLO · Dummy: 8057HLO
• Rope — Passage: 8101HLO · Privacy: 8201HLO · Dummy: 8051HLO
• Square — Passage: 5110HLO · Privacy: 5210HLO · Dummy: 5050HLO
• Urban Modern — Passage: 5316HLO · Privacy: 5326HLO · Dummy: 5306HLO
• Watford — Passage: 8110HLO · Privacy: 8210HLO · Dummy: 8510HLO
• Wilshire — Passage: 8161HLO · Privacy: 8261HLO · Dummy: 8561HLO
• Stretto 1-1/2″×5″ — Passage: 5507HLO · Privacy: 5607HLO · Dummy Pair: 5007HLO
