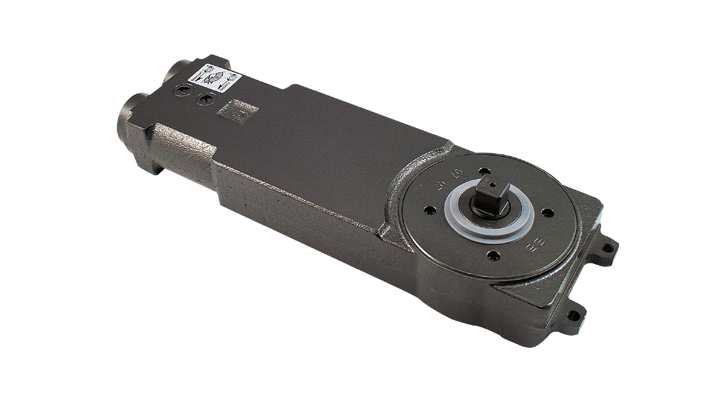

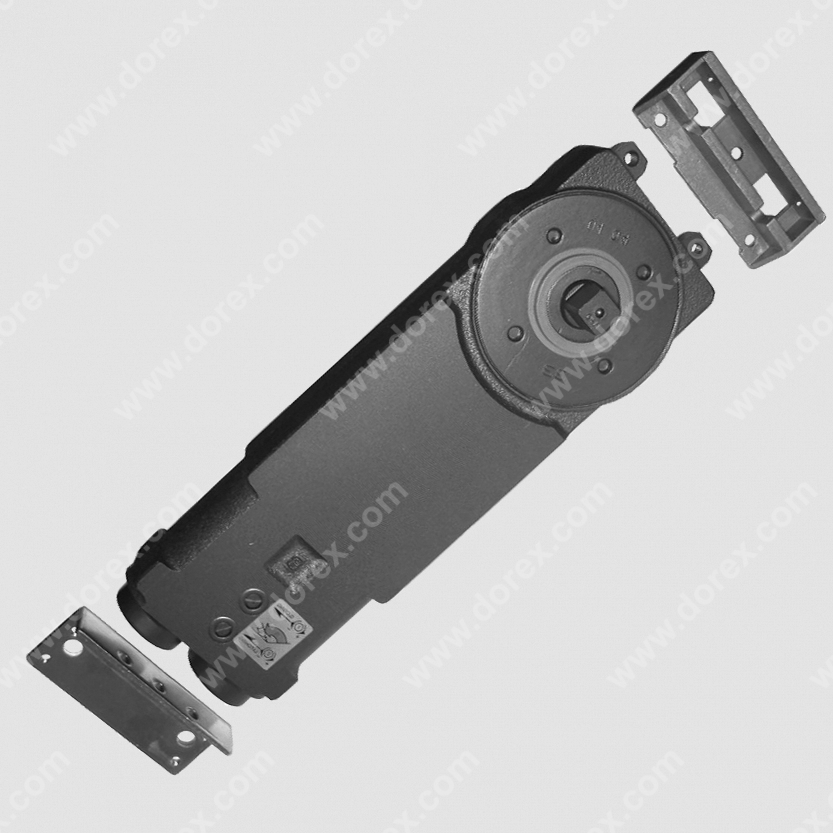

Dorex Heavy Duty Concealed Door Closer 30 Series Grade 1
$203.50 – $303.90
Dorex Heavy Duty Concealed Door Closer 30 Series Grade 1
Heavy duty, overhead concealed door closer for moderate commercial traffic applications.
Description
Models
Description
- For moderate commeecial traffic applications
- EN1154 compliant for 500,000 test cycles
- 5-Year limited warranty
- For Single or double acting, centre hung applications
- For wood, metal or aluminum frame doors over 1 3⁄4″ (44.5 mm) thick
- Suitable for frame-less tempered glass doors up to 1⁄2″ (13 mm) thick (patch fittings sold separately)
- Compatible/interchangeable with Jackson-type door closers
- Light, regular and heavy duty models available
- Non-handed
- Compact steel body fits 1 3⁄4 x 4″ (44.5 x 101.6 mm) header sections
- Hydraulic, dual spring operation
- Non-gumming, non-freezing hydraulic fluid
- 90° and 105° maximum opening models available
- Adjustable sweep and latching speeds
- Adjustable vertical clearance to accomodate threshholds
- Mounting hardware included
- Mechanical hold open available
Models
30 MODEL
- 1⁄2″ (12.7 mm) spindle
- Includes side loading arm (#3010S) and adjustable floor mounted pivot set (#3020DP)
31 MODEL
- 11⁄16″ (17 mm) spindle
- Includes end loading arm (#3010EL) and adjustable floor mounted pivot set (#3020DP)
31B MODEL
- 11⁄16″ (17 mm) spindle
- Body only model
- Recommended for frame less tempered glass doors with appropriate glass patch fittings (sold separately
| Select | Dorex Door Closer Co-Hd-Ho-105, Dorex Door Closer Co-Hd-105, Dorex Door Closer Co-Hd-Ho-90, Dorex Door Closer Co-Hd-90, Dorex Door Closer Co-Ld-105, Dorex Door Closer Co-Ld-90, Dorex Door Closer Co-Rd-Ho-105, Dorex Door Closer Co-Rd-105, Dorex Door Closer Co-Rd-Ho-90, Dorex Door Closer Co-Rd-90, Dorex Door Closer Co-Rd-Nho-90-17mm, Dorex Door Closer Co-Hd-105-17mm, Dorex Door Closer Co-Rd-Ho-105-17mm, Dorex Door Closer Co-Rd-105-17mm, Dorex Door Closer Co-Rd-Ho-90-17mm, Dorex Door Closer Co-Rd-90-17mm, Dorex Door Closer Co-Rd-Ho-105-17mm – 31B, Dorex Door Closer Co-Rd-105-17mm – 31B, Dorex Door Closer Co-Rd-Ho-90-17mm – 31B |
|---|
