Dorex DM SERIES GRADE 1
$359.99
Dorex DM SERIES GRADE 1

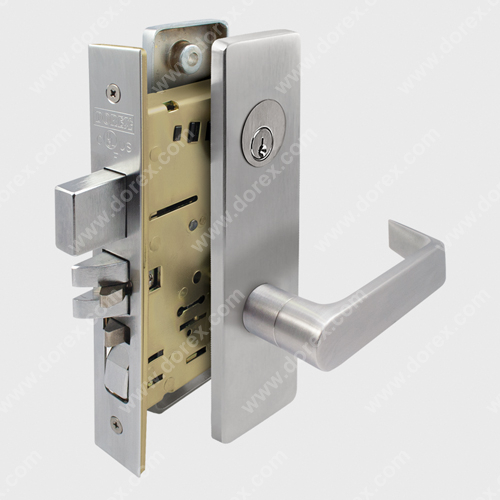

The DOREX DM is a premium, heavy-duty, mortise lock that is available in a wide variety of trim and handle styles.
Ideal for commercial or residential applications with high traffic and/or enhanced security requirements.
Dorex DM SERIES GRADE 1
- Conforms to ANSI/BHMA A156.13, Series 1000, Grade 1
- cULus listed, 3 hr fire rating
- UL10C Positive Pressure Rated
- ADA Compliant levers
- 5-Year limited warranty
- For doors 13⁄4 –21⁄4″ (45 – 57 mm) thick*
- Handed, field reversible
- 23⁄4″ (70 mm) backset
- Faceplate adjusts for bevelled doors
- Brass, 2 piece latchbolt with 3⁄4″ (19 mm) throw
- Deadbolt functions include brass deadbolt with two security pins; 1″ (25.4 mm) throw
- Adjustable faceplate for bevelled doors
- Single action egress
- Square or round rose trim available
- Three (3) escutcheon sizes available
- Contemporary lever and knob styles available
- Strike and dust box
- Keyed functions include 6-pin mortise cylinder, Schlage “C” keyway with 2 keys
- Small format interchangeable core (SFIC) mortise cylinder available (SFIC sold separately)
Full keying services available. Other common and high security keyways available.
(*) Kit required for thicknesses greater than 2″ (51 mm)
LEVER / KNOBS
ROSE
ESCUTCHEON TRIM
LEVER / KNOBS
ROSE
ESCUTCHEON TRIM
| Weight | 8 kg |
|---|---|
| Dimensions | 20 × 10 × 5 cm |
| Function | Back-to-Back dummy (Double dummy), Classroom, Dormitory, Entrance, Office, Passage, Privacy, Single dummy, Storeroom, Storeroom with deadbolt |
| Finish | 26D SATIN CHROME, C15 SATIN NICKEL |
| Lever / Knob Styles | Apollo, Circa, Cornell, Dartmouth, Glasgow, Kent, Linea, Stanford, The flat |
| Trim options | Large Escutcheon, Regular Escutcheon, Round Rose, Square Rose, Wide Escutcheon |
| Handing | LH Left Hand, RH Right Hand |
