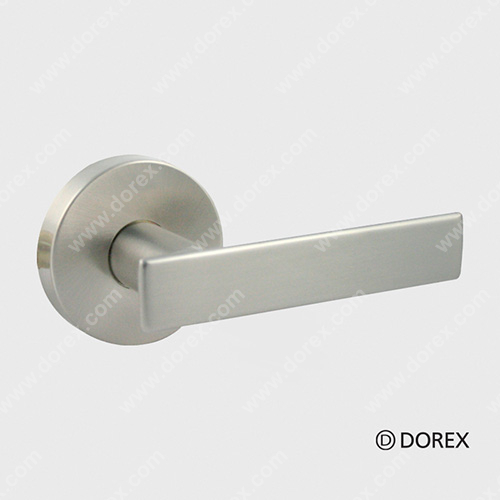

Dorex 10010 The Flat Lever
Dorex 10010 The Flat Lever
Part of the Tecnica Design collection, this modern lever is ideal for residential and light-duty office applications.
15 SATIN NICKEL
C19 MATTE BLACK
26 POLISHED CHROME
26D SATIN CHROME
Other finishes available
Approximate finish simulation, for reference only
- 20 minute fire-rating available with listed fire-can*
- Meets ADA requirements
- For doors 13⁄8 to 13⁄4″ (35 to 44.5 mm) thick
- Kit for doors 21⁄4″ (57 mm) thick available
- Non-handed
- Adjustable 23⁄8″ or 23⁄4″ (60 or 70 mm) backset
- Stainless steel spring latch, available Drive-In or Universal
- Available with square or round rose
- Privacy function with auto-release
- Concealed mounting screws
- Full lip strike with 1⁄4″ (6.4 mm) radius corners
- Strike available for hollow metal frames
(*) Fire-can must be ordered in conjunction with lockset.
| Weight | 1 kg |
|---|---|
| Dimensions | 15 × 15 × 8 cm |
| Function | Passage, Privacy, Single Dummy, Dummy, Pair |
| Finish | Satin Nickel, Satin Chrome, Flat Black |
| Rosette | Square, Round |
| Door Thiickness | 1 3/8" (Standard), 1 3/4", 2 1/4" |
| Latch Option | Drive – In, Standard |
